Brand: Wago

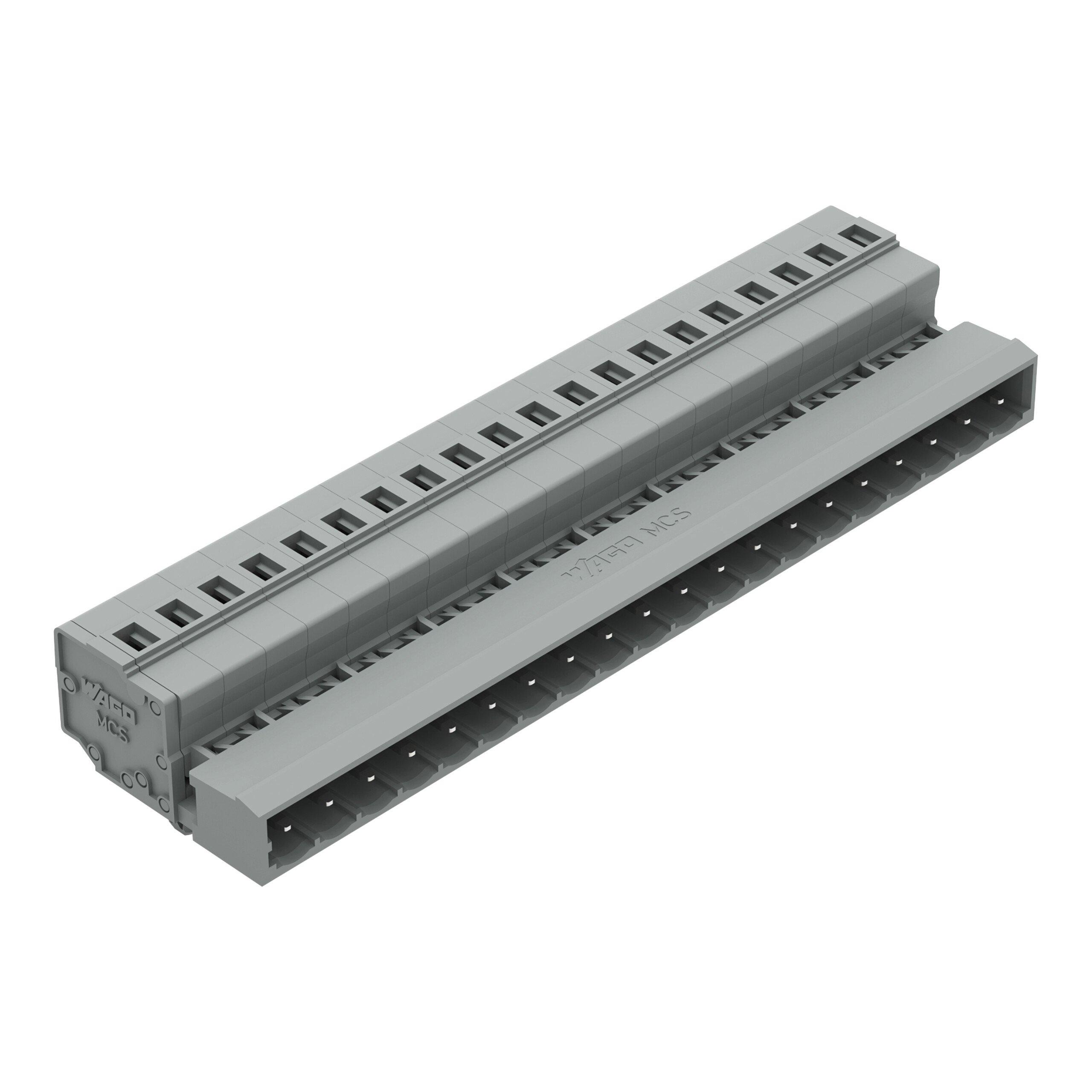

WAGO 231-620/018-000 1-conductor male connector
Image Disclaimers Message
Brand: Wago
WAGO 231-620/018-000 1-conductor male connector
Brand: Wago
WAGO 231-620/018-000 1-conductor male connector
Part #:231-620/018-000
SKU #: 2375269
$15.42/EA
Key Features
Part #:231-620/018-000
SKU #: 2375269
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$15.42/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 18.8 mm / 0.74 inch
Insulation material: Polyamide (PA66)
Mounting type: Snap-in mounting foot || Panel mounting
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 20
Weight: 30.700 g
Width: 103.2 mm / 4.063 inch
UNSPSC: 39121459
UPC: 04044918259156
WAGO 231-620/018-000 1-conductor male connector
Additional Description: WAGO-231-620/018-000 1-CONDUCTOR MALE CONNECTOR; SNAP-IN MOUNTING FEET; 2.5 MM ; PIN SPACING 5 MM; 20-POLE; 2,50 MM ; GRAY 51110909
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 20-pole; DIN-35 rail/panel mounting; Snap-in mounting feet; 2,50 mm²; gray
