Brand: Wago

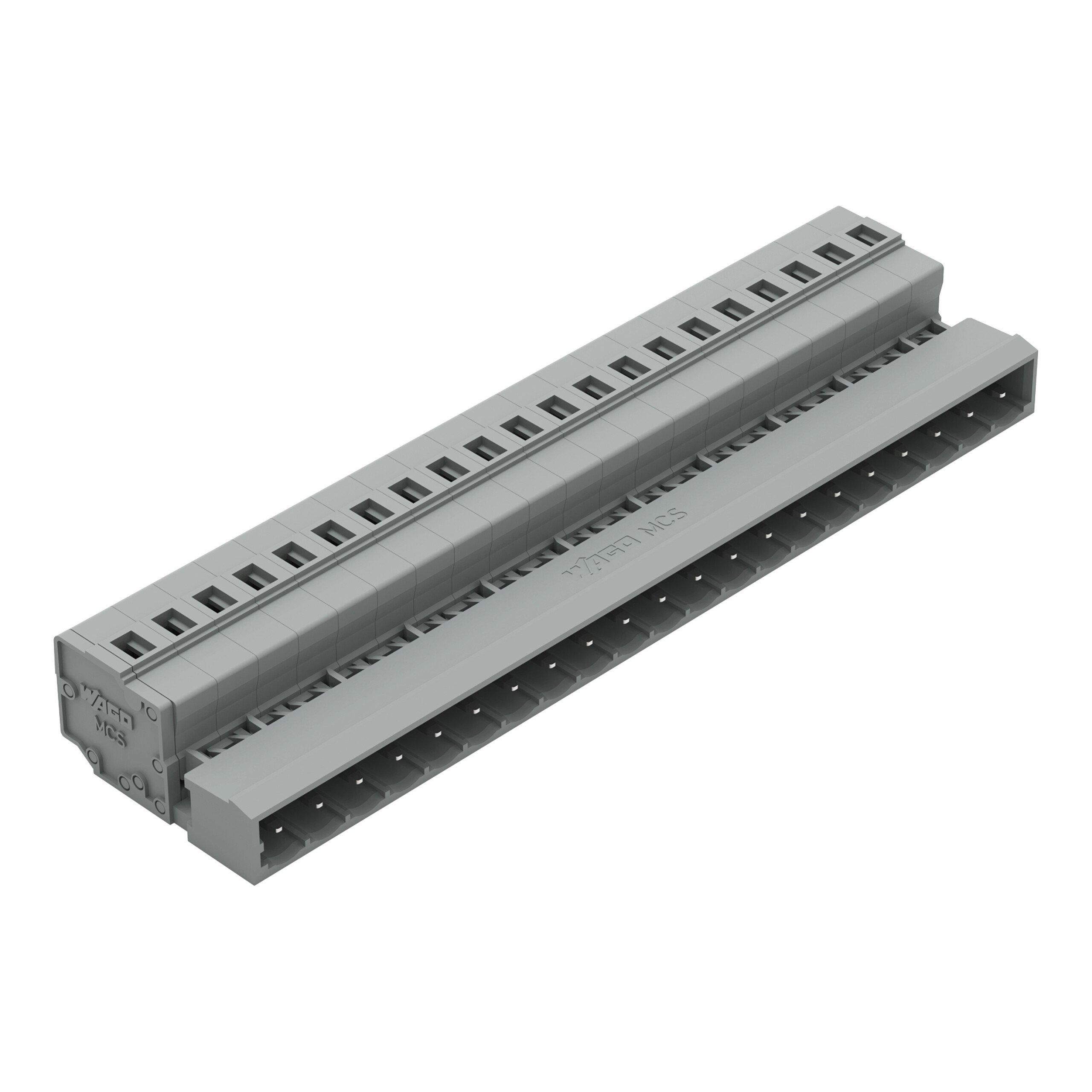

WAGO 231-621 1-conductor male connector
Image Disclaimers Message
Brand: Wago
WAGO 231-621 1-conductor male connector
Brand: Wago
WAGO 231-621 1-conductor male connector
Part #:231-621
SKU #: 2197458
$16.38/EA
Key Features
Part #:231-621
SKU #: 2197458
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
$16.38/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 0 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Male connector/plug
Country of origin: DE
Depth: 27.5 mm / 1.083 inch
Height: 14.3 mm / 0.563 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 0
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 21
Weight: 31.098 g
Width: 108.2 mm / 4.26 inch
UNSPSC: 39121459
UPC: 04044918280051
WAGO 231-621 1-conductor male connector
Additional Description: WAGO-231-621 1-CONDUCTOR MALE CONNECTOR; 2.5 MM ; PIN SPACING 5 MM; 21-POLE; 2,50 MM ; GRAY 51112724
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 21-pole; 2,50 mm²; gray
