231-633/017-000

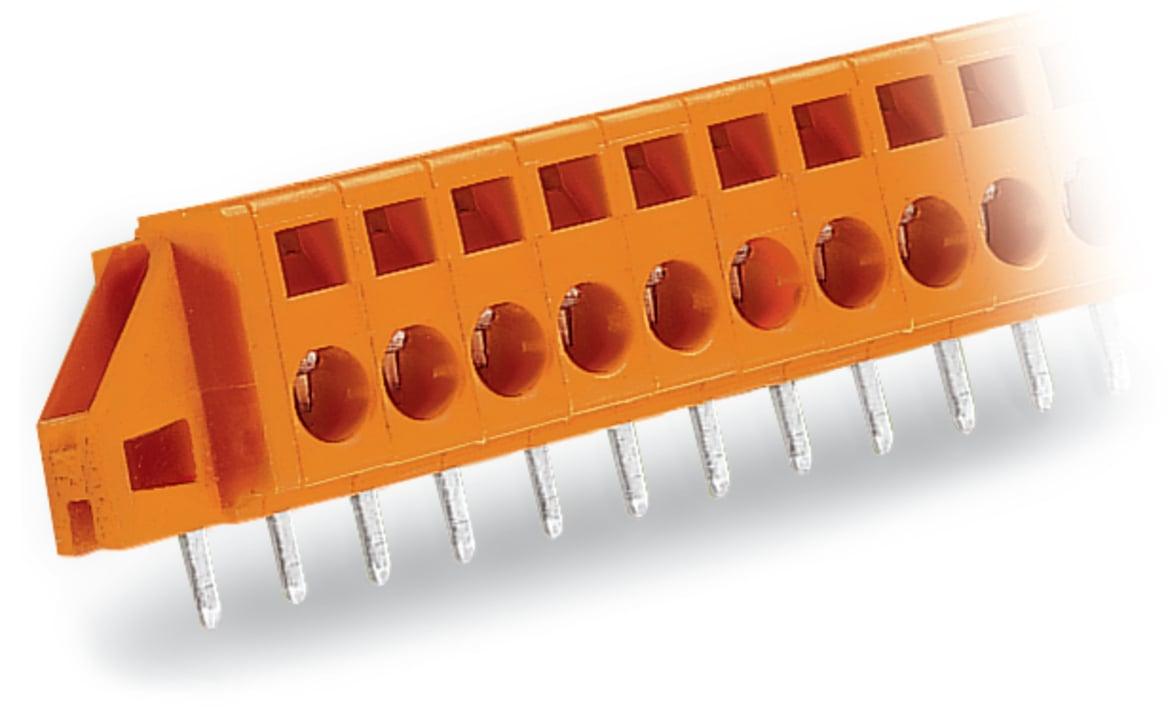

WAGO 231-633/017-000 Through-panel PCB terminal strip
Part Number # 231-633/017-000
SKU # 2287200
$2.78 / Each
Typical price:$3.01 / Each
Wago 231-633/017-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-633/017-000 |
| SKU #: | 2287200 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.748 in H x 1.198 in W x 0.752 in D |
| Number of Poles: | 3 |
| Spacing: | 0.2 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 14 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 19.1 mm / 0.752 inch |
| Height: | 19 mm / 0.748 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Mounting flange || Feed-through mounting || Panel mounting, Panel Feed Through, Surface |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of connection points: | 3 |
| Weight: | 5.100 g |
| Width: | 30.44 mm / 1.198 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918282970 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.78 / Each
Typical price:$3.01 / Each
Quantity:
- WAGO, 231-633/017-000, PCB Terminal Block, Operating Tool, 630 V, 16 A, 3 Pole, 28 to 14 AWG Wire, 0.31 to 0.35 in Wire Strip Length, 0.2 in Spacing, Surface Mounting, Clamp Connection, Polyamide, Orange, 0.748 in H x 1.198 in W x 0.752 in D Dimensions
231-633/017-000 Item Features
- Feedthrough PCB terminal strips with screwdriver-actuated CAGE CLAMP
- With flanges for PCB or front-panel mounting - either flush with enclosure or protruding
231-633/017-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2287200Part Number #231-633/017-000UNSPSC39121459UPC04044918282970
