Part Number # 231-639
SKU # 2355000
231-639

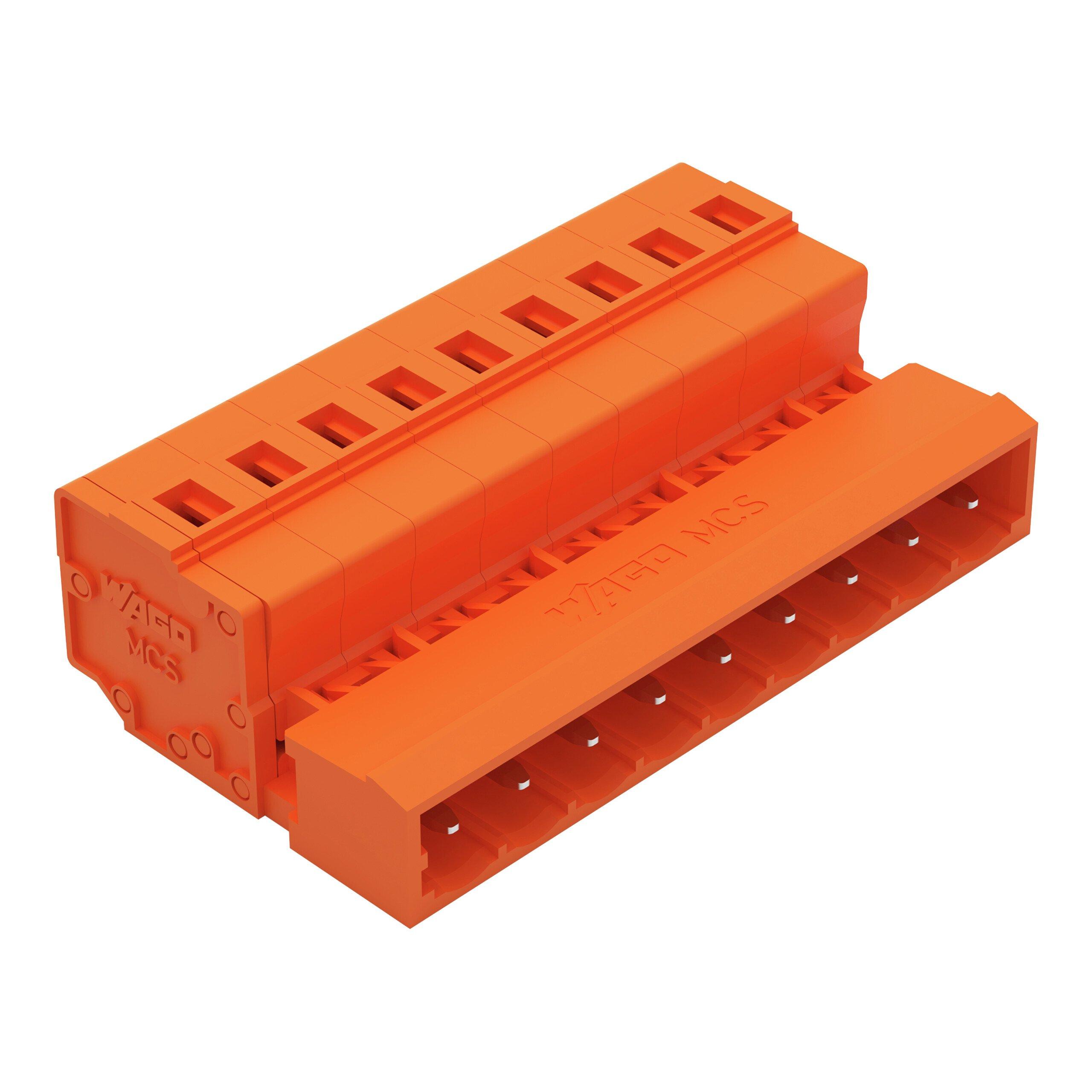

WAGO 231-639 1-conductor male connector
Part Number # 231-639
SKU # 2355000
$9.12 / Each
Typical price:$9.88 / Each
Wago 231-639 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-639 |
| SKU #: | 2355000 |
| Dimensions: | 0.563 in H x 1.926 in W x 1.083 in D |
| Number of Poles: | 9 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Connection type: | Clamp |
| Depth: | 27.5 mm / 1.083 inch |
| Height: | 14.3 mm / 0.563 inch |
| Rated current: | 0 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 9 |
| Weight: | 14.040 g |
| Width: | 48.92 mm / 1.926 inch |
| UNSPSC: | 39121459 |
| UPC: | 04044918260466 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.12 / Each
Typical price:$9.88 / Each
Quantity:
WAGO 231-639 1-conductor male connector
Brand: Wago
Part Number: 231-639
Additional Description: WAGO-231-639 1-CONDUCTOR MALE CONNECTOR; 2.5 MM ; PIN SPACING 5.08 MM; 9-POLE; 2,50 MM ; ORANGE 2.5MM^2; PIN SPACING 5.08MM; 9-POLE
Catalog Description: 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 9-pole; 2,50 mm²; orange
231-639 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- With coding fingers
231-639 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2355000Part Number #231-639UNSPSC39121459UPC04044918260466
Image provided may only be a representation of final product and may include optional equipment
