Brand: Wago
231-641

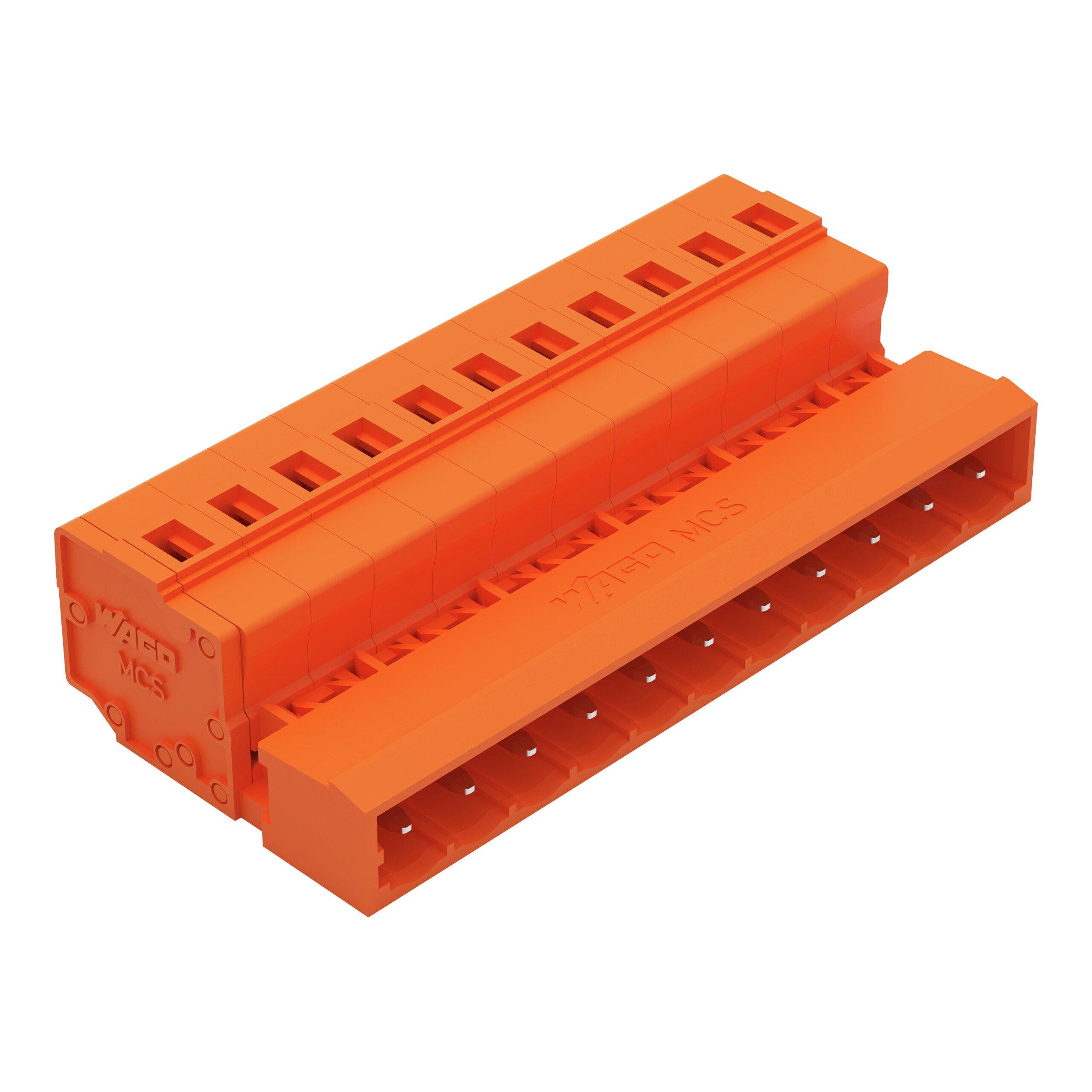

WAGO 231-641 Electrical Connector Assembly
Part Number # 231-641
SKU # 2431804
$10.80 / Each
Typical price:$11.70 / Each
Wago 231-641 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-641 |
| SKU #: | 2431804 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.563 in H x 2.326 in W x 1.083 in D |
| Number of Poles: | 11 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Color: | Orange |
| Connection type: | Clamp |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918260657 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.80 / Each
Typical price:$11.70 / Each
Quantity:
- WAGO, 231-641, 1-Conductor Male Connector, Operating Tool, 630 V, 12 A, 11 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Clamp Connection, -35 to 60 deg C, Polyamide, Orange, 0.563 in H x 2.326 in W x 1.083 in D Dimensions
231-641 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- With coding fingers
231-641 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2431804Part Number #231-641UNSPSC39121421UPC04044918260657
