Part Number # 231-642/019-000
SKU # 2213960
Image Disclaimers Message
Brand: Wago
231-642/019-000

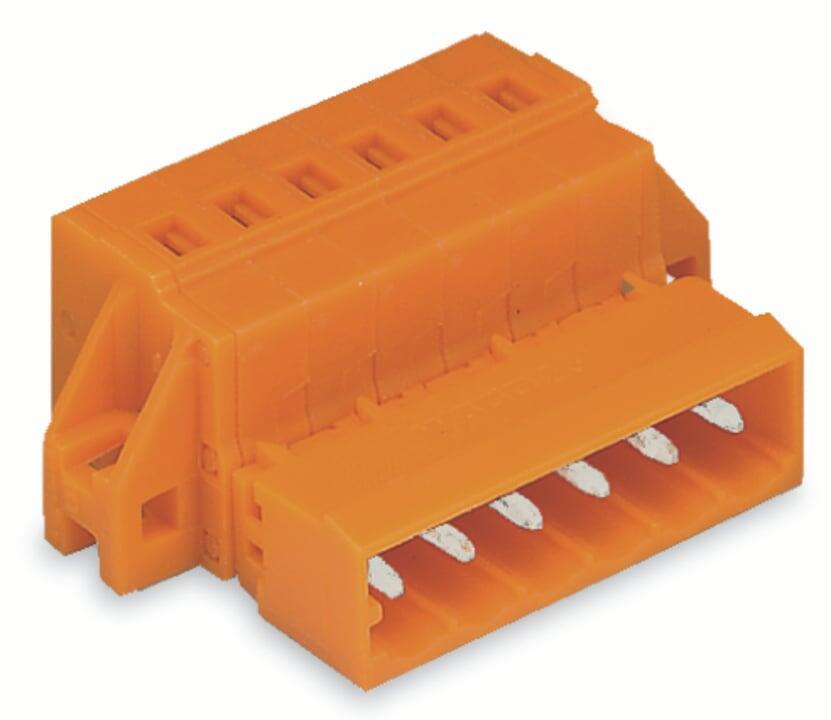

WAGO 231-642/019-000 1-conductor male connector
Part Number # 231-642/019-000
SKU # 2213960
$11.88 / Each
Typical price:$12.87 / Each
Wago 231-642/019-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-642/019-000 |
| SKU #: | 2213960 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.563 in H x 2.983 in W x 1.083 in D |
| Number of Poles: | 12 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 27.5 mm / 1.083 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Mounting flange || Feed-through mounting || Panel mounting, Panel, Panel Feed Through |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 12 |
| Weight: | 19.320 g |
| Width: | 75.76 mm / 2.983 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918260732 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.88 / Each
Typical price:$12.87 / Each
Quantity:
- WAGO, 231-642/019-000, 1-Conductor Male Connector, Operating Tool, 630 V, 12 A, 12 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Panel Mounting, Clamp Connection, -35 to 60 deg C, Polyamide, Orange, 0.563 in H x 2.983 in W x 1.083 in D Dimensions
231-642/019-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
- With coding fingers
231-642/019-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2213960Part Number #231-642/019-000UNSPSC39121459UPC04044918260732
