231-710/027-000

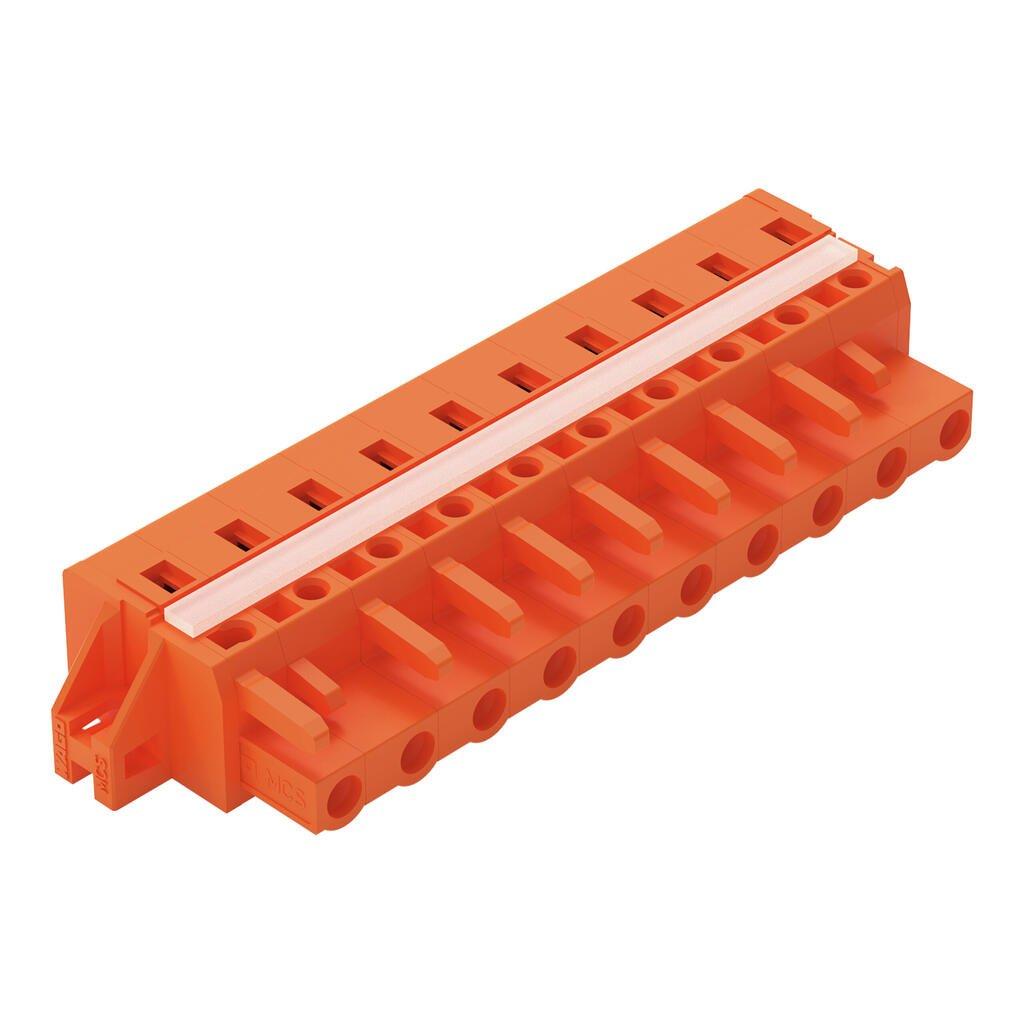

WAGO 231-710/027-000 1-conductor female plug
Part Number # 231-710/027-000
SKU # 2385171
$13.10 / Each
Typical price:$14.19 / Each
Wago 231-710/027-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 231-710/027-000 |
| SKU #: | 2385171 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.563 in H x 3.483 in W x 1.041 in D |
| Number of Poles: | 10 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 26.45 mm / 1.041 inch |
| Height: | 14.3 mm / 0.563 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Mounting flange || Feed-through mounting || Panel mounting, Panel, Panel Feed Through |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 10 |
| Weight: | 22.250 g |
| Width: | 88.46 mm / 3.483 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918376785 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13.10 / Each
Typical price:$14.19 / Each
Quantity:
- WAGO, 231-710/027-000, 1-Conductor Female Connector, Operating Tool, 1 kV, 16 A, 10 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Panel Mounting, Clamp Connection, -35 to 60 deg C, Polyamide, Orange, 0.563 in H x 3.483 in W x 1.041 in D Dimensions
231-710/027-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
231-710/027-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2385171Part Number #231-710/027-000UNSPSC39121421UPC04044918376785
