232-203/026-000

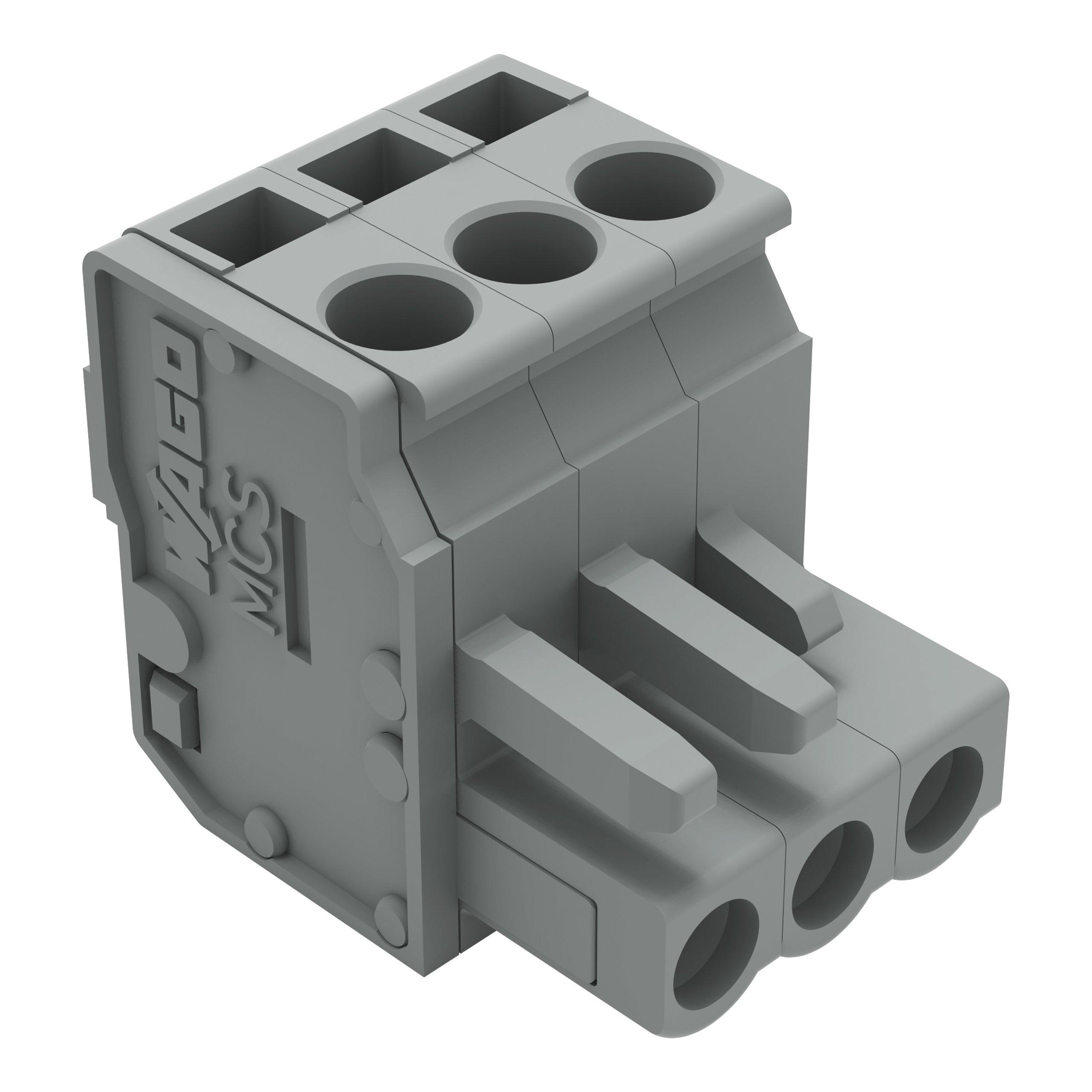

WAGO 232-203/026-000 1-conductor female plug
Part Number # 232-203/026-000
SKU # 2318417
Wago 232-203/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-203/026-000 |
| SKU #: | 2318417 |
| Amperage Rating: | 14 A |
| Dimensions: | 0.783 in H x 0.685 in W x 0.896 in D |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Conductor entry direction to mating direction: | 90 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 22.75 mm / 0.896 inch |
| Height: | 19.9 mm / 0.783 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 14 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 5.825 g |
| Width: | 17.4 mm / 0.685 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918387767 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 232-203/026-000 1-conductor female plug
Brand: Wago
Part Number: 232-203/026-000
Wago 232-203/026-000 Angled Female Plug, 232 Series, 0.685 IN Width X 0.896 IN Depth X 0.783 IN Height, Cage Clamp Connection, Wire Size: 28 - 12 AWG, 0.08 - 2.5 SQ-MM (Solid, Fine-Stranded), 0.25 - 1.5 SQ-MM (Fine-Stranded With Ferrule And Plastic Collar), 0.25 - 2.5 SQ-MM (Fine-Stranded With Ferrule Without Plastic Collar), 3 Conductor, 3 Pole, Copper Base Alloy Contact, Nickel-Chromium Spring Steel, Tin-Plated, Gray, 630 V, 12 AMP, PA 6.6 Insulation, -60 To 85 DEG C, Pollution degree: 2, Soli
Additional Description: WAGO-232-203/026-000 1-CONDUCTOR FEMALE PLUG; ANGLED; 2.5 MM ; PIN SPACING 5 MM; 3-POLE; 2,50 MM ; GRAY 51121034
Catalog Description: 1-conductor female connector, angled; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 3-pole; 2,50 mm²; gray
232-203/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
232-203/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2318417Part Number #232-203/026-000UNSPSC39121459UPC04044918387767
