Brand: Wago

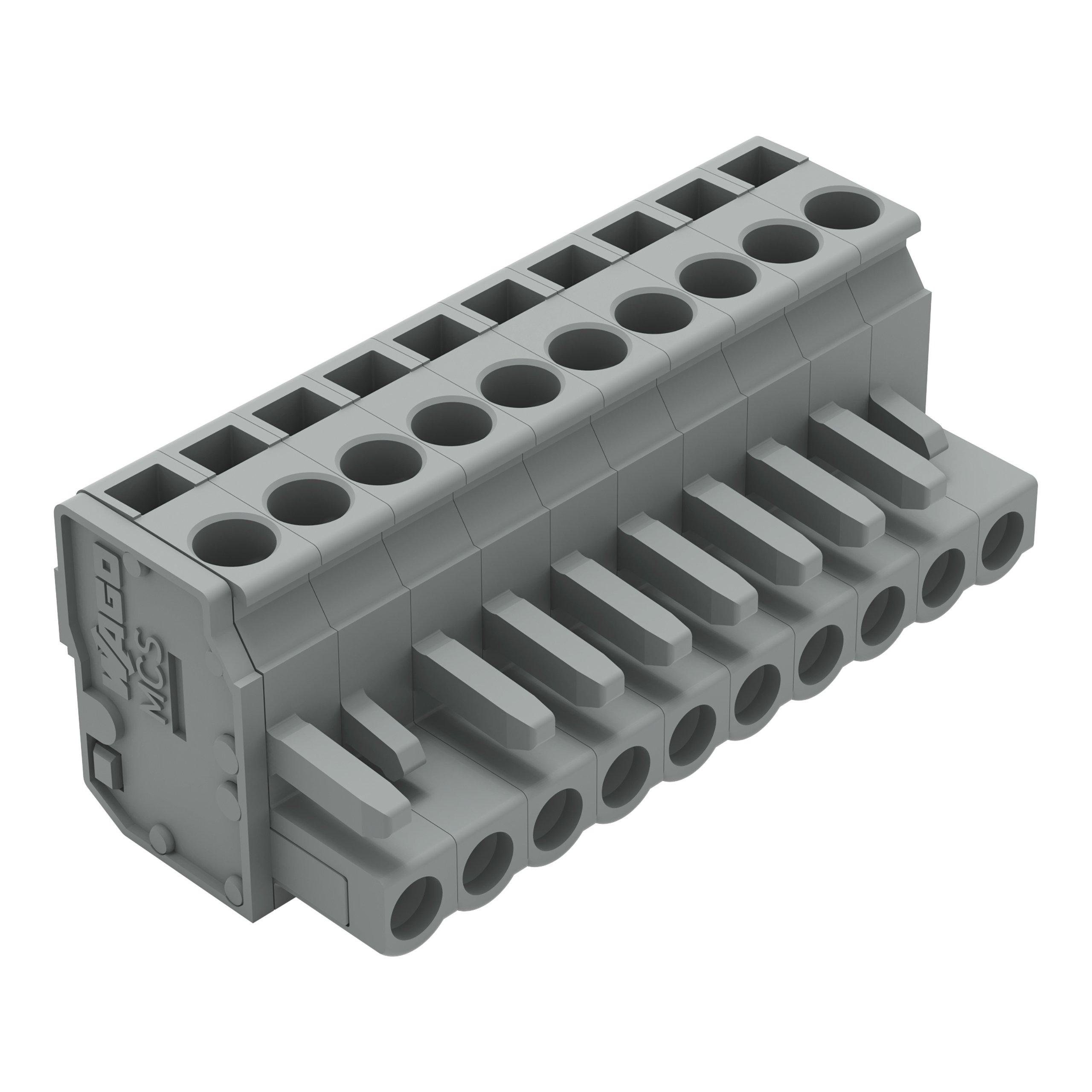

WAGO 232-210/026-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 232-210/026-000 1-conductor female plug
Brand: Wago
WAGO 232-210/026-000 1-conductor female plug
Part #:232-210/026-000
SKU #: 2201165
$8.98/EA
Key Features
Part #:232-210/026-000
SKU #: 2201165
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 90 °
Connection technology: CAGE CLAMP®
$8.98/EA
Specifications
Brand: Wago
Actuation type: Operating tool
Approvals per: CSA, UL 1059
Color: Gray
Conductor entry direction to mating direction: 90 °
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact material: Copper alloy
Contact type (pluggable connector): Female connector/socket
Country of origin: PL
Depth: 22.75 mm / 0.896 inch
Height: 19.9 mm / 0.783 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 14 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 10
Weight: 18.780 g
Width: 52.4 mm / 2.063 inch
UNSPSC: 39121459
UPC: 04044918388122
WAGO 232-210/026-000 1-conductor female plug
Additional Description: WAGO-232-210/026-000 1-CONDUCTOR FEMALE PLUG; ANGLED; 2.5 MM ; PIN SPACING 5 MM; 10-POLE; 2,50 MM ; GRAY
Catalog Description: 1-conductor female connector, angled; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 10-pole; 2,50 mm²; gray
