Part Number # 232-236
SKU # 2277576
Image Disclaimers Message
232-236

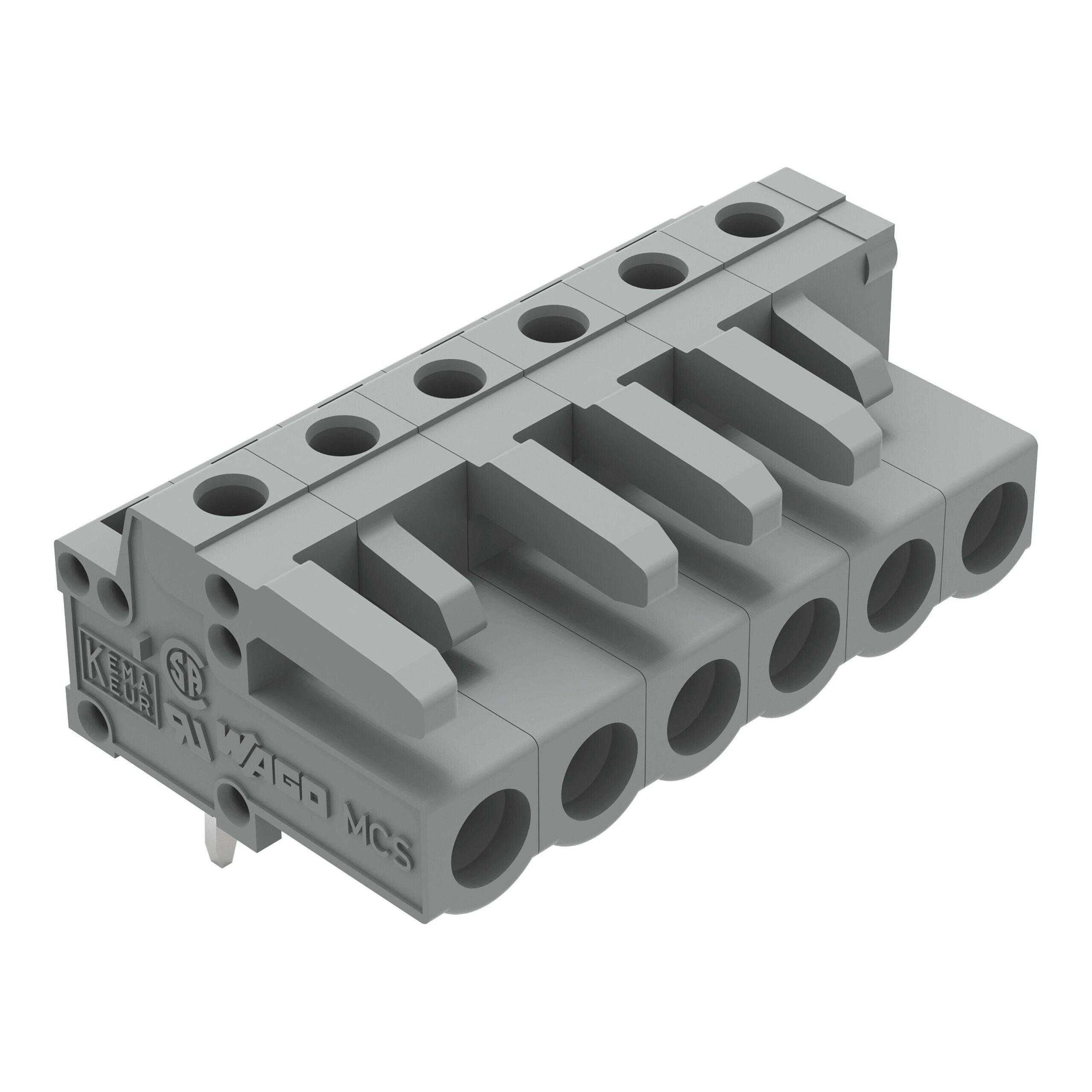

WAGO 232-236 THT female header
Part Number # 232-236
SKU # 2277576
$4.64 / Each
Typical price:$5.03 / Each
Wago 232-236 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-236 |
| SKU #: | 2277576 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.654 in H x 1.24 in W x 0.719 in D |
| Number of Positions: | 6 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connector (connection type): | For PCB |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 18.25 mm / 0.719 inch |
| Height: | 16.6 mm / 0.654 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 5.602 g |
| Width: | 31.5 mm / 1.24 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918579162 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.64 / Each
Typical price:$5.03 / Each
Quantity:
WAGO 232-236 THT female header
Brand: Wago
Part Number: 232-236
Additional Description: WAGO-232-236 THT FEMALE HEADER; 0.6 X 1.0 MM SOLDER PIN; ANGLED; PIN SPACING 5 MM; 6-POLE; GRAY 51135213 MM; 6-POLE; GRAY 51135213
Catalog Description: THT female header; angled; Pin spacing 5 mm; 6-pole; 0.6 x 1.0 mm solder pin; gray
232-236 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- Touch-proof PCB outputs
- Easy-to-identify PCB inputs and outputs
- With coding fingers
232-236 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2277576Part Number #232-236UNSPSC39121459UPC04044918579162
