Part Number # 232-274
SKU # 2355551
Image Disclaimers Message
232-274

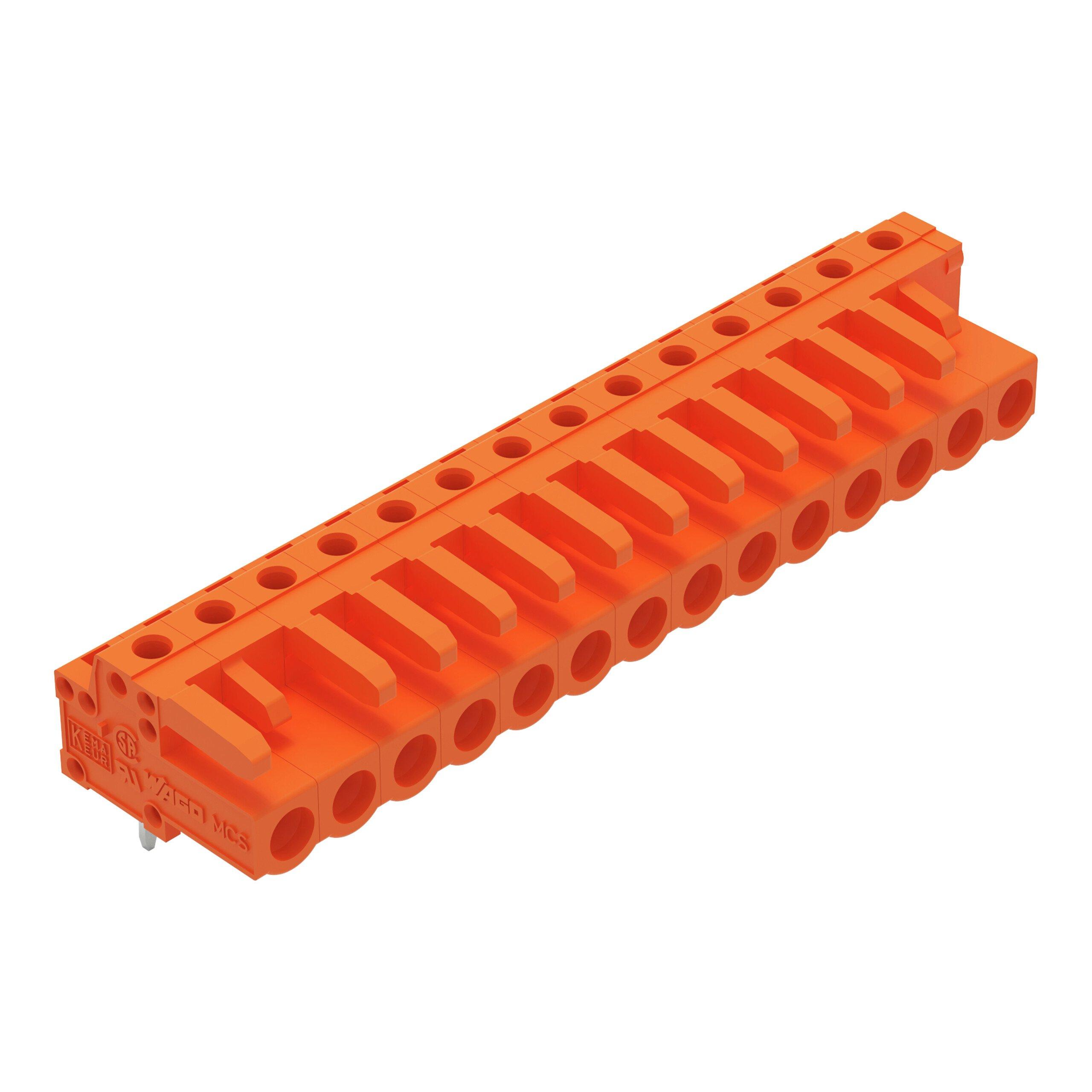

WAGO 232-274 THT female header
Part Number # 232-274
SKU # 2355551
$10.39 / Each
Typical price:$11.26 / Each
Wago 232-274 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-274 |
| SKU #: | 2355551 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.654 in H x 2.859 in W x 0.719 in D |
| Number of Positions: | 14 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Connector (connection type): | For PCB |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 18.25 mm / 0.719 inch |
| Height: | 16.6 mm / 0.654 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Total number of connection points: | 14 |
| Weight: | 12.170 g |
| Width: | 72.62 mm / 2.859 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918579599 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.39 / Each
Typical price:$11.26 / Each
Quantity:
WAGO 232-274 THT female header
Brand: Wago
Part Number: 232-274
Additional Description: WAGO-232-274 THT FEMALE HEADER; 0.6 X 1.0 MM SOLDER PIN; ANGLED; PIN SPACING 5.08 MM; 14-POLE; ORANGE 51135253 5.08 MM; 14-POLE; ORANGE 51135253
Catalog Description: THT female header; angled; Pin spacing 5.08 mm; 14-pole; 0.6 x 1.0 mm solder pin; orange
232-274 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- Touch-proof PCB outputs
- Easy-to-identify PCB inputs and outputs
- With coding fingers
232-274 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2355551Part Number #232-274UNSPSC39121459UPC04044918579599
