232-302/026-000

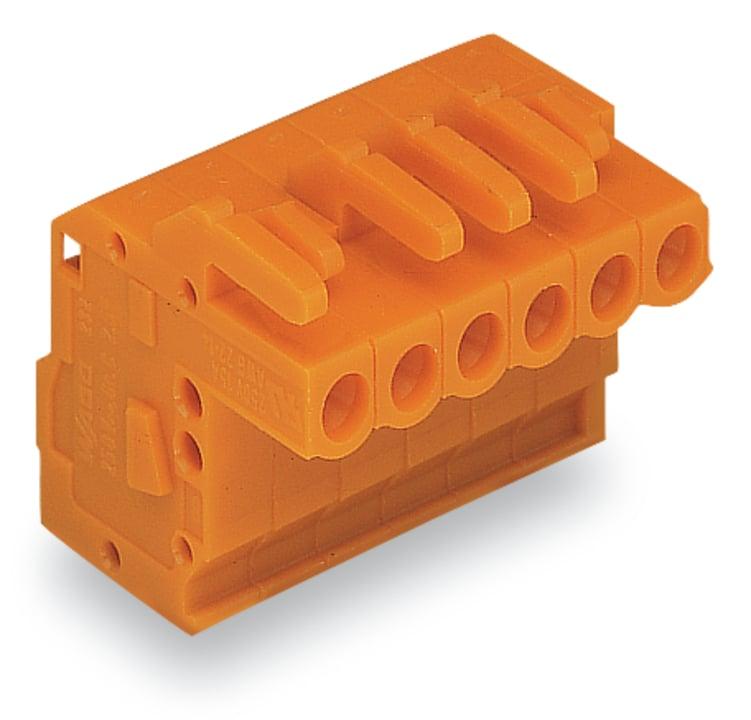

WAGO 232-302/026-000 1-conductor female plug
Part Number # 232-302/026-000
SKU # 2274679
Wago 232-302/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-302/026-000 |
| SKU #: | 2274679 |
| Amperage Rating: | 14 A |
| Dimensions: | 0.941 in H x 0.494 in W x 0.896 in D, 0.941�in H x 0.494�in W x 0.896�in D |
| Number of Poles: | 2 |
| Series: | 232 |
| Spacing: | 5.08 mm |
| Temperature Rating (Degrees F): | -60 to +85 deg C |
| Terminal Type: | Cage |
| Type: | 1-Conductor |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Conductor entry direction to mating direction: | 270 ° |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Female Socket |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 22.75 mm / 0.896 inch |
| Height: | 23.9 mm / 0.941 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Mounting type: | DIN Rail |
| Number of connection types: | 1 |
| Rated current: | 14 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 3.923 g |
| Width: | 12.56 mm / 0.494 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918385145 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 232-302/026-000 1-conductor female plug
Brand: Wago
Part Number: 232-302/026-000
WAGO, 232-302/026-000, Female Connector, 1-Conductor, Series: 232, 320 V, 14 A, 4 kV Power, 2 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Cage Terminal, 5.08 mm Spacing, DIN Rail Mounting, Female Socket Connection, -60 to +85 deg C, Polyamide (PA66), Orange, 0.941 in H x 0.494 in W x 0.896 in D Dimensions
Additional Description: WAGO-232-302/026-000 1-CONDUCTOR FEMALE PLUG; ANGLED; 2.5 MM ; PIN SPACING 5.08 MM; 2-POLE; 2,50 MM ; ORANGE 51120804
Catalog Description: 1-conductor female connector, angled; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 2-pole; 2,50 mm²; orange
232-302/026-000 Item Features
- Universal connection for all conductor types
- Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP actuation
- Integrated test ports
- With coding fingers
232-302/026-000 Standards
RoHS CompliantSKU #2274679Part Number #232-302/026-000UNSPSC39121459UPC04044918385145
