Part Number # 232-364
SKU # 2431886
Brand: Wago
232-364

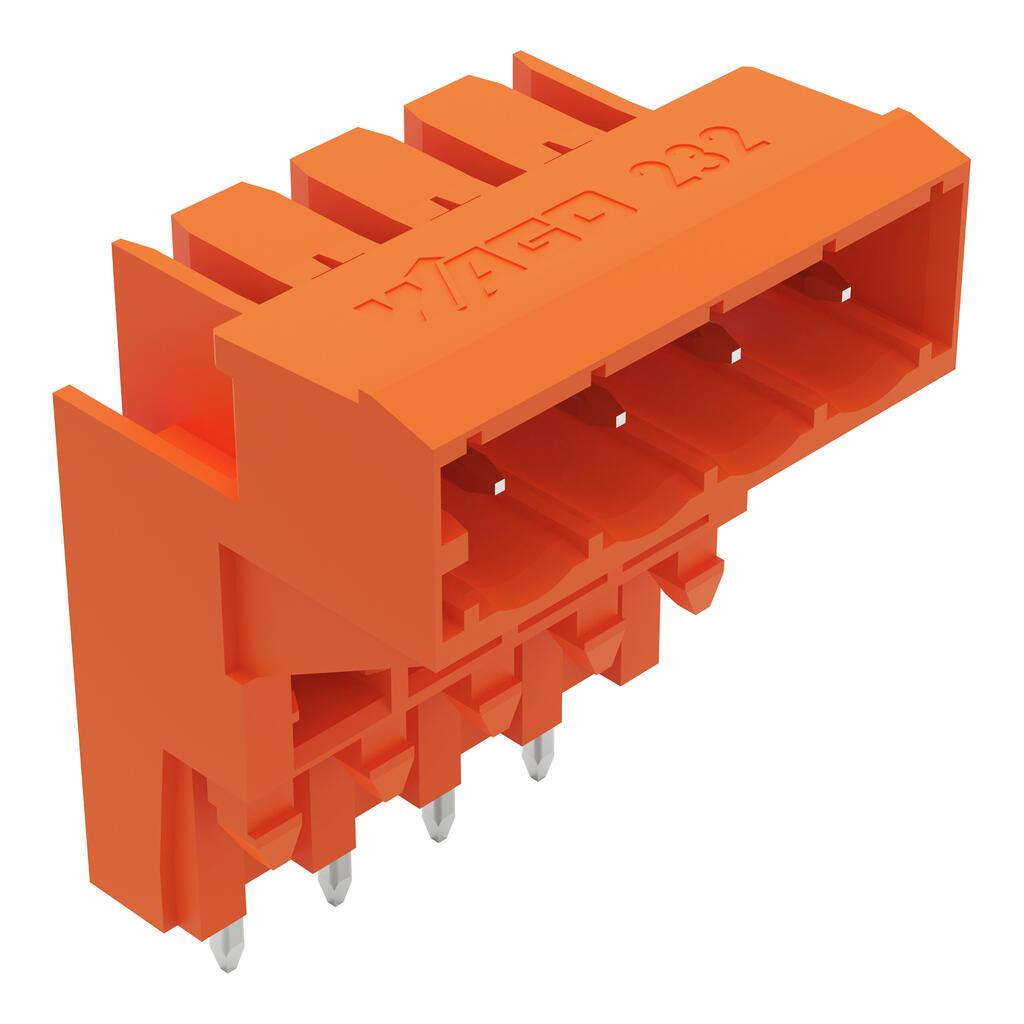

WAGO 232-364 Electrical Connector Assembly
Part Number # 232-364
SKU # 2431886
$2.69 / Each
Typical price:$2.91 / Each
Wago 232-364 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-364 |
| SKU #: | 2431886 |
| Amperage Rating: | 12 A |
| Dimensions: | 1.22 in H x 0.926 in W x 0.669 in D |
| Number of Positions: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04044918685559 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.69 / Each
Typical price:$2.91 / Each
Quantity:
WAGO 232-364 Electrical Connector Assembly
Brand: Wago
Part Number: 232-364
Additional Description: WAGO-232-364 THT MALE HEADER FOR DOUBLE-DECK ASSEMBLY; 1.0 X 1.0 MM SOLDER PIN; ANGLED; PIN SPACING 5.08 MM; 4-POLE; ORANGE 51142972
Catalog Description: THT male header for double-deck assembly; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5.08 mm; 4-pole; orange
232-364 Item Features
- Male headers for double-deck assembly provide high-density wiring for wire-to-board connections
- Horizontal PCB mounting
- Double-deck design allows male or female headers with angled solder pins to be placed on the lower deck
- Coding option available
232-364 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2431886Part Number #232-364UNSPSC39121421UPC04044918685559
Image provided may only be a representation of final product and may include optional equipment
