232-564/007-000

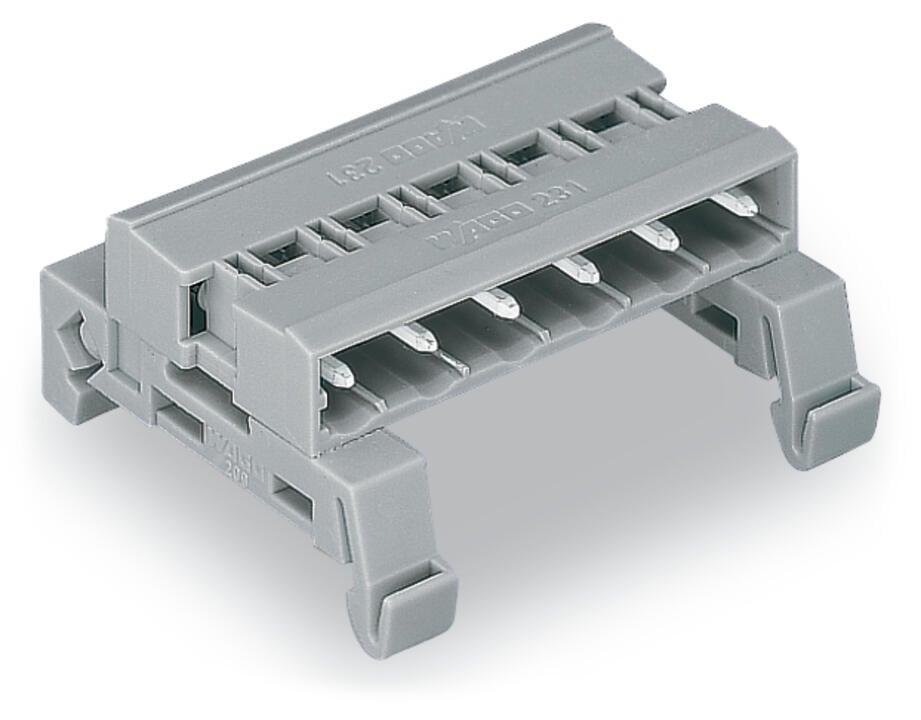

WAGO 232-564/007-000 Double pin header
Part Number # 232-564/007-000
SKU # 2231122
$4.84 / Each
Typical price:$5.24 / Each
Wago 232-564/007-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-564/007-000 |
| SKU #: | 2231122 |
| Amperage Rating: | 12 A |
| Dimensions: | 25.9 mm H x 1.209 in W x 1.673 in D |
| Number of Positions: | 4 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | 4-Pole |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connector (connection type): | For pluggable connector |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 42.5 mm / 1.673 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 6.542 g |
| Width: | 30.7 mm / 1.209 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04045454340308 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.84 / Each
Typical price:$5.24 / Each
Quantity:
- WAGO, 232-564/007-000, Double Pin Header, 4-Pole, 1 kV, 12 A, 4 Positions, 0.295 in Pitch/Row Spacing, 35 mm DIN Rail Mounting, -35 to 60 deg C, Polyamide, Gray, 25.9 mm H x 1.209 in W x 1.673 in D Dimensions
232-564/007-000 Item Features
- Allow MCS Female Connectors fitted with wire harness or cable assembly to be plugged together
- Adapter for DIN-35 rail mounting
- Coding via coding keys on both sides
232-564/007-000 Standards
CSA|IEC/EN 60664-1|DIN 35|RoHS CompliantSKU #2231122Part Number #232-564/007-000UNSPSC39121459UPC04045454340308
