Part Number # 232-732
SKU # 2222345
Image Disclaimers Message
232-732

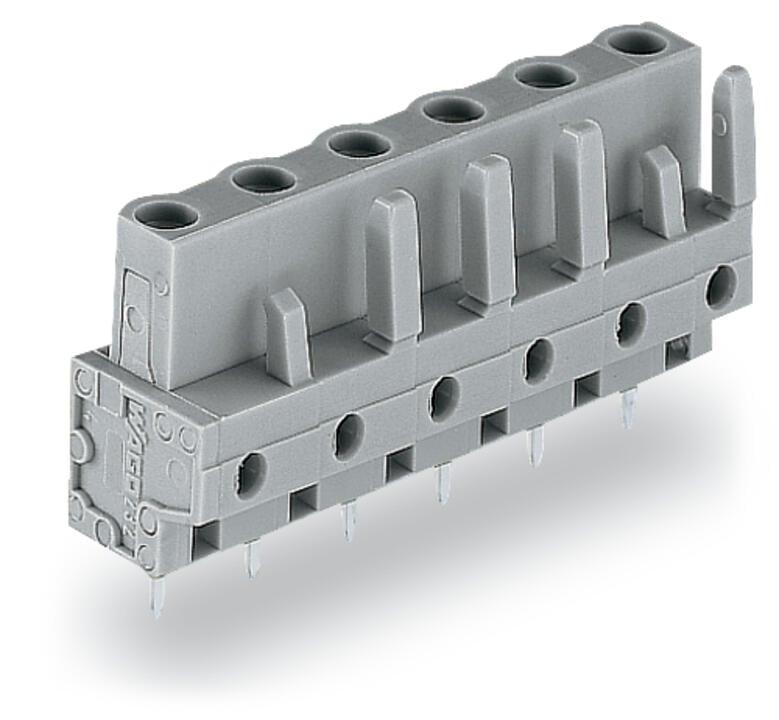

WAGO 232-732 THT female header
Part Number # 232-732
SKU # 2222345
$1.98 / Each
Typical price:$2.15 / Each
Wago 232-732 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-732 |
| SKU #: | 2222345 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.915 in H x 0.551 in W x 0.457 in D |
| Number of Positions: | 2 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Straight |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connector (connection type): | For PCB |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 11.6 mm / 0.457 inch |
| Height: | 23.25 mm / 0.915 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 2.150 g |
| Width: | 14 mm / 0.551 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918579704 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.98 / Each
Typical price:$2.15 / Each
Quantity:
- WAGO, 232-732, THT Female Header, Straight, 1 kV, 12 A, 2 Positions, 0.295 in Pitch/Row Spacing, -35 to 60 deg C, Polyamide, Gray, 0.915 in H x 0.551 in W x 0.457 in D Dimensions
232-732 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- Touch-proof PCB outputs
- Easy-to-identify PCB inputs and outputs
- With coding fingers
232-732 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2222345Part Number #232-732UNSPSC39121459UPC04044918579704
