Part Number # 232-866/047-000
SKU # 2321246
Image Disclaimers Message
232-866/047-000

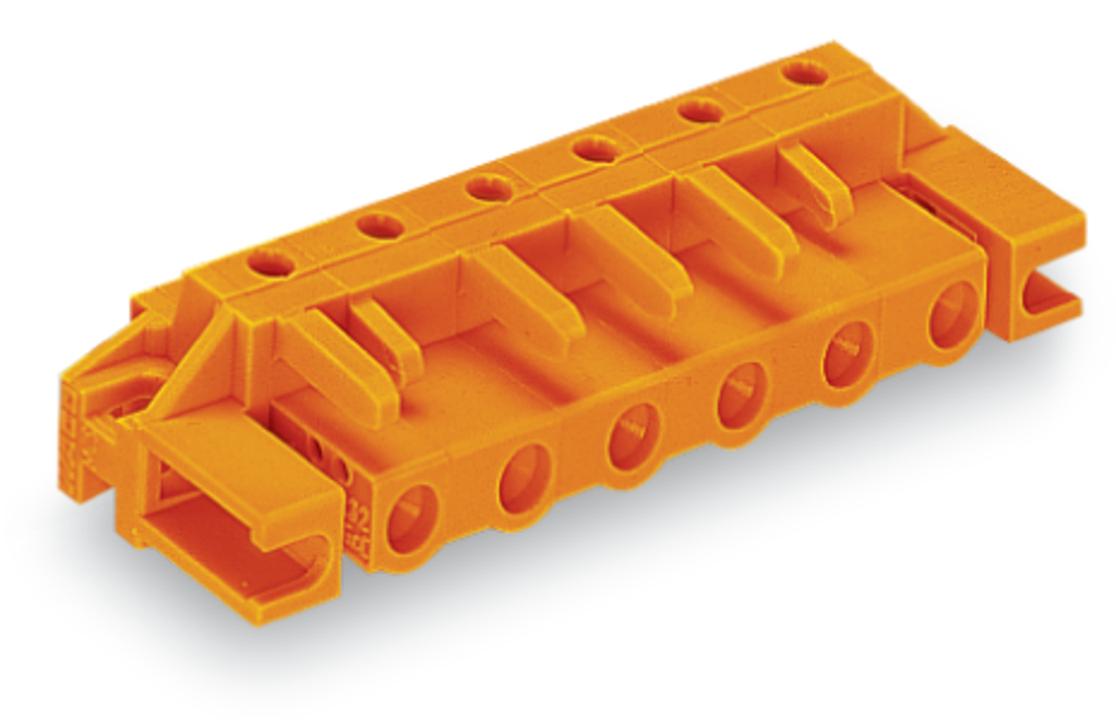

WAGO 232-866/047-000 THT female header
Part Number # 232-866/047-000
SKU # 2321246
$5.34 / Each
Typical price:$5.78 / Each
Wago 232-866/047-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 232-866/047-000 |
| SKU #: | 2321246 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.654 in H x 2.283 in W x 0.719 in D |
| Number of Positions: | 6 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Angled |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Connector (connection type): | For PCB |
| Contact material: | Copper alloy |
| Country of origin: | DE |
| Depth: | 18.25 mm / 0.719 inch |
| Height: | 16.6 mm / 0.654 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Mounting flange || Flush feed-through mounting || Panel mounting, Panel Feed Through |
| Number of connection types: | 1 |
| Rated current: | 0 |
| Weight: | 7.438 g |
| Width: | 57.98 mm / 2.283 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918580281 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.34 / Each
Typical price:$5.78 / Each
Quantity:
- WAGO, 232-866/047-000, THT Female Header, Angled, 1 kV, 12 A, 6 Positions, 0.3 in Pitch/Row Spacing, Panel Feed Through Mounting, -35 to 60 deg C, Polyamide, Orange, 0.654 in H x 2.283 in W x 0.719 in D Dimensions
232-866/047-000 Item Features
- Horizontal or vertical PCB mounting via straight or angled solder pins
- Touch-proof PCB outputs
- Easy-to-identify PCB inputs and outputs
- With coding fingers
232-866/047-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2321246Part Number #232-866/047-000UNSPSC39121459UPC04044918580281
