Part Number # 233-203
SKU # 2311766
Image Disclaimers Message
233-203

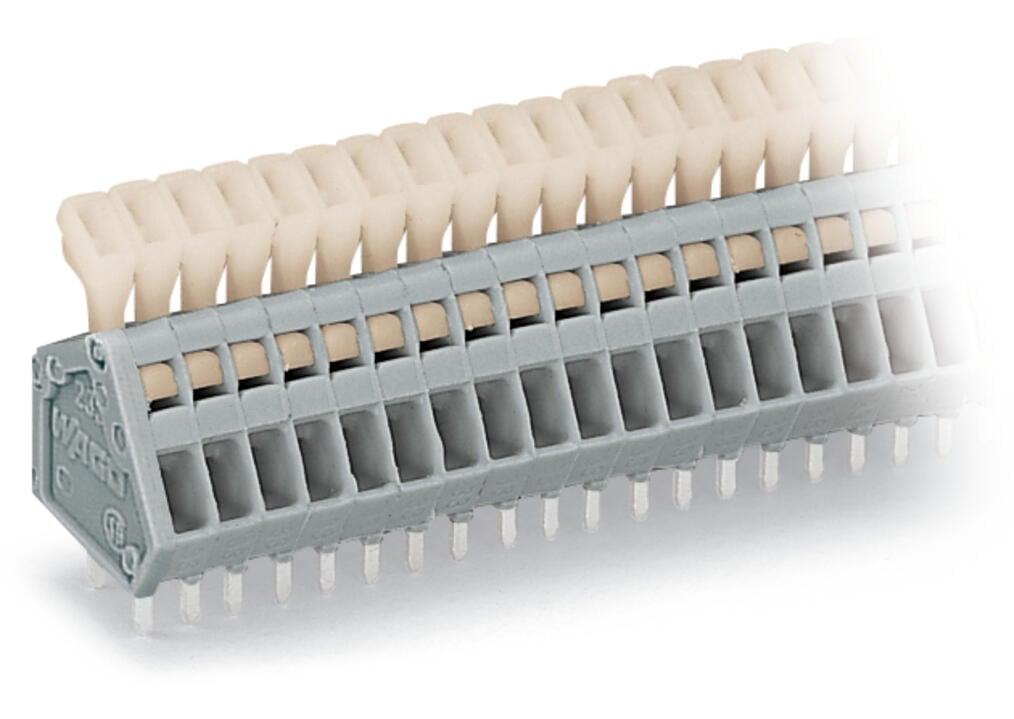

WAGO 233-203 PCB terminal block
Part Number # 233-203
SKU # 2311766
$215.00 / 125Each
Typical price:$232.50 / Each
Wago 233-203 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 233-203 |
| SKU #: | 2311766 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.768 in H x 0.386 in W x 0.547 in D |
| Number of Poles: | 3 |
| Spacing: | 0.098 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 20 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 13.9 mm / 0.547 inch |
| Height: | 19.5 mm / 0.768 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Solid conductor: | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Total number of connection points: | 3 |
| Weight: | 1.299 g |
| Width: | 9.8 mm / 0.386 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04045454049430 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$215.00 / 125Each
Typical price:$232.50 / Each
Quantity:
- WAGO, 233-203, PCB Terminal Block, Operating Tool, 320 V, 6 A, 3 Pole, 28 to 20 AWG Wire, 0.2 to 0.24 in Wire Strip Length, 0.098 in Spacing, Clamp Connection, Polyamide, Gray, 0.768 in H x 0.386 in W x 0.547 in D Dimensions
233-203 Application
Ideal for in-the-field wiring thanks to simplified push-button actuation233-203 Item Features
- PCB terminal strips with push-buttons and CAGE CLAMP connection
- Double solder pins for high mechanical stability on PCB
- Convenient, tool-free operation
233-203 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2311766Part Number #233-203UNSPSC39121459UPC04045454049430
