234-510

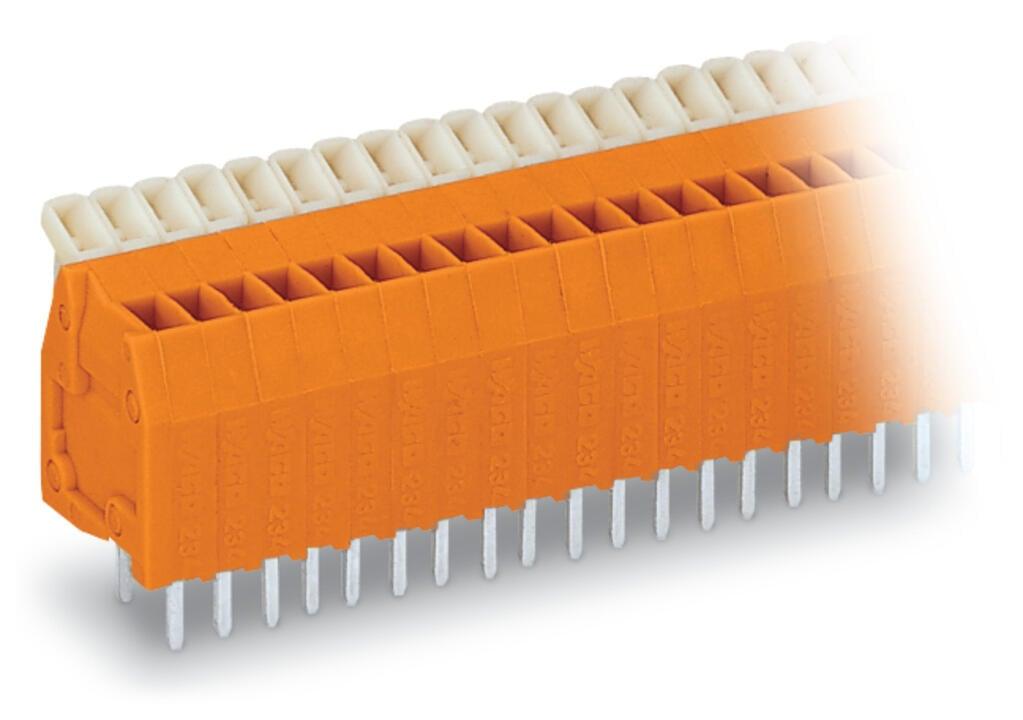

WAGO 234-510 PCB terminal block
Part Number # 234-510
SKU # 2239387
$5.39 / Each
Typical price:$5.84 / Each
Wago 234-510 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 234-510 |
| SKU #: | 2239387 |
| Amperage Rating: | 6 A |
| Dimensions: | 0.709 in H x 1.087 in W x 0.567 in D |
| Number of Poles: | 10 |
| Spacing: | 0.1 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 20 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Orange |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 14.4 mm / 0.567 inch |
| Height: | 18 mm / 0.709 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 0.25 |
| Solid conductor: | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Total number of connection points: | 10 |
| Weight: | 5.103 g |
| Width: | 27.6 mm / 1.087 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918652186 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.39 / Each
Typical price:$5.84 / Each
Quantity:
WAGO 234-510 PCB terminal block
Brand: Wago
Part Number: 234-510
Additional Description: WAGO-234-510 PCB TERMINAL BLOCK; PUSH-BUTTON; 0.5 MM ; PIN SPACING 2.54 MM; 10-POLE; CAGE CLAMP ; 0,50 MM ; ORANGE 51140670
Catalog Description: PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.54 mm; 10-pole; CAGE CLAMP®; 0,50 mm²; orange
234-510 Application
Ideal for in-the-field wiring thanks to simplified push-button actuation234-510 Item Features
- PCB terminal strips with push-buttons and CAGE CLAMP connection
- Double solder pins for high mechanical stability on PCB
- Convenient, tool-free operation
234-510 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2239387Part Number #234-510UNSPSC39121459UPC04044918652186
