236-108

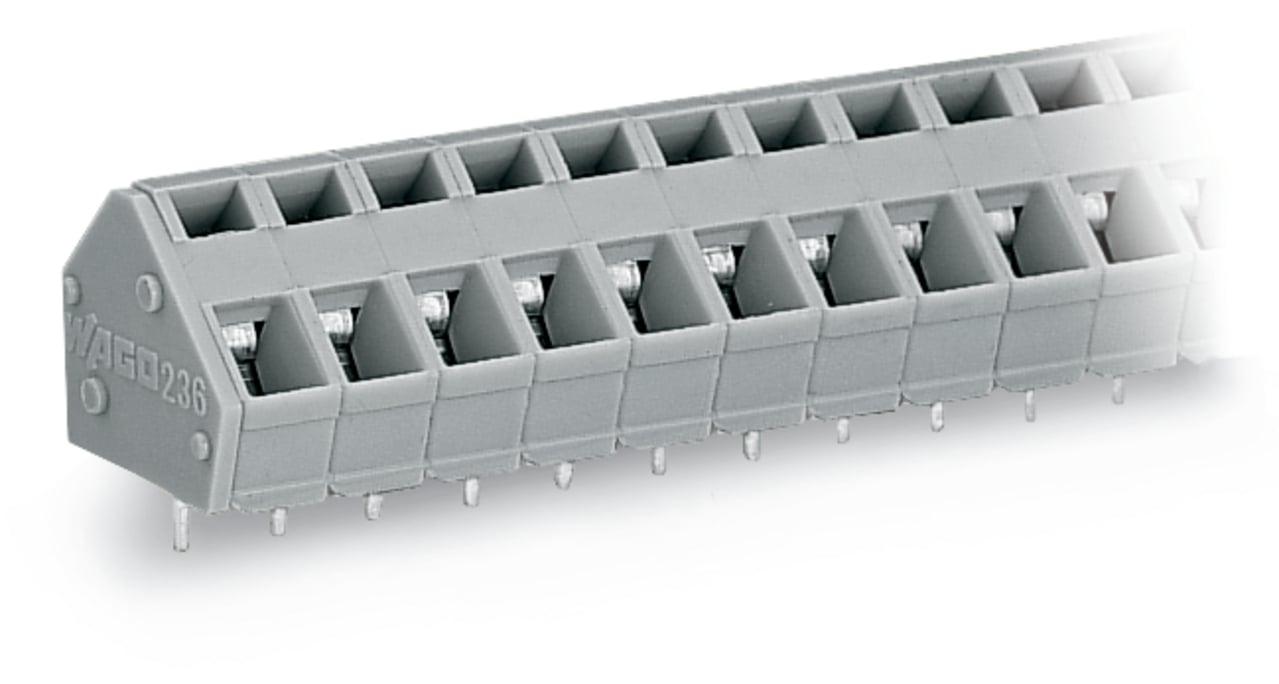

WAGO 236-108 PCB terminal block
Part Number # 236-108
SKU # 2179585
Wago 236-108 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 236-108 |
| SKU #: | 2179585 |
| Amperage Rating: | 12 A |
| Dimensions: | 0.66 in H x 1.66 in W x 0.55 in D |
| Number of Poles: | 6 |
| Series: | 236 |
| Spacing: | 0.19 to 0.2 in |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 8-Pole |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 14 mm / 0.551 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Number of connection types: | 1 |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 8 |
| Weight: | 6.932 g |
| Width: | 42.3 mm / 1.665 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918766418 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 236-108 PCB terminal block
Brand: Wago
Part Number: 236-108
WAGO, 236-108, Terminal Block, 8-Pole, Series: 236, 500 V, 12 A, 6 kV Power, 6 Pole, 0.2 to 0.24 in Wire Strip Length, 0.19 to 0.2 in Spacing, Cage Clamp Connection, -60 to 105 deg C, Polyamide (PA66), Gray, 0.66 in H x 1.66 in W x 0.55 in D Dimensions
Additional Description: WAGO-236-108 PCB TERMINAL BLOCK; 2.5 MM ; PIN SPACING 5/5.08 MM; 8-POLE; CAGE CLAMP ; COMMONING OPTION; 2,50 MM ; GRAY 51144362
Catalog Description: PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 8-pole; CAGE CLAMP®; commoning option; 2,50 mm²; gray
236-108 Item Features
- PCB terminal strips with CAGE CLAMP connection, screwdriver actuation parallel or perpendicular to conductor entry
- Versions with Ex approval
- Mixed-color PCB terminal strips from factory
- Operating tools for factory wiring
- 45 deg conductor entry angle permits a wide range of applications and wiring options
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
236-108 Standards
RoHS CompliantSKU #2179585Part Number #236-108UNSPSC39121459UPC04044918766418
