Part Number # 236-404
SKU # 2311767
Image Disclaimers Message
236-404

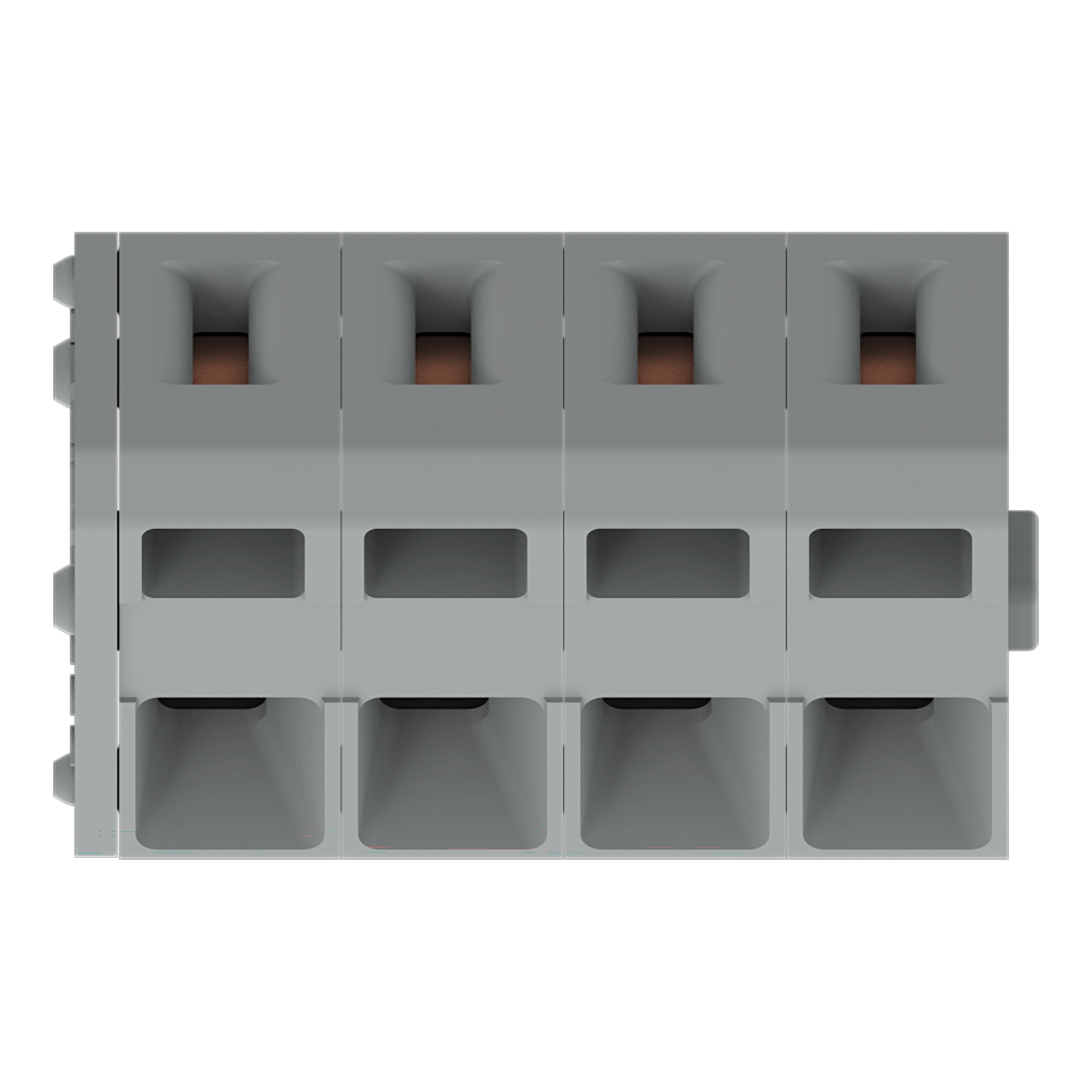

WAGO 236-404 PCB terminal block
Part Number # 236-404
SKU # 2311767
$117.15 / 55Each
Typical price:$127.05 / Each
Wago 236-404 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 236-404 |
| SKU #: | 2311767 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.669 in H x 0.878 in W x 0.551 in D |
| Number of Poles: | 4 |
| Spacing: | 0.2 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 14 mm / 0.551 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 3.656 g |
| Width: | 22.3 mm / 0.878 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918894593 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$117.15 / 55Each
Typical price:$127.05 / Each
Quantity:
- WAGO, 236-404, PCB Terminal Block, Operating Tool, 630 V, 24 A, 4 Pole, 28 to 12 AWG Wire, 0.2 to 0.24 in Wire Strip Length, 0.2 in Spacing, Clamp Connection, Polyamide, Gray, 0.669 in H x 0.878 in W x 0.551 in D Dimensions
236-404 Item Features
- PCB terminal strips with CAGE CLAMP connection, screwdriver actuation parallel or perpendicular to conductor entry
- Mixed-color PCB terminal strips from factory
- Operating tools for factory wiring
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
236-404 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|Ex approvalSKU #2311767Part Number #236-404UNSPSC39121459UPC04044918894593
