236-506

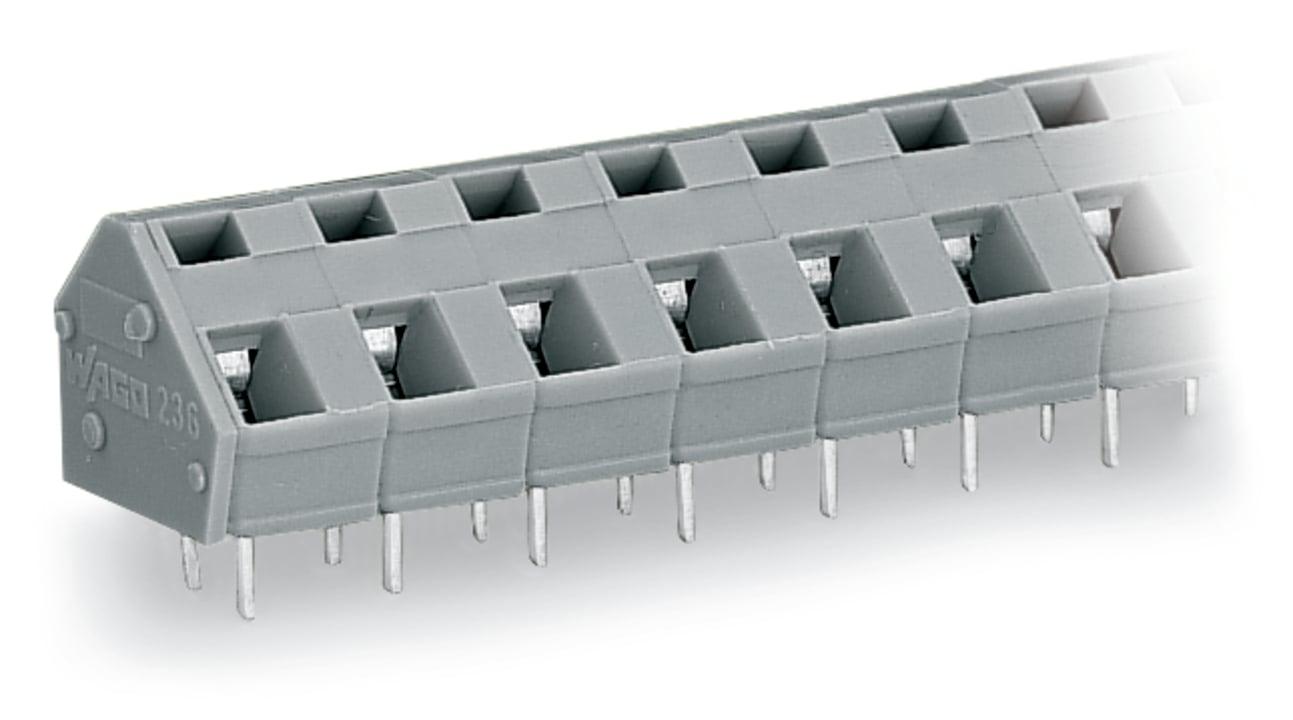

WAGO 236-506 PCB terminal block
Part Number # 236-506
SKU # 2264259
$78.75 / 25Each
Typical price:$85.25 / Each
Wago 236-506 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 236-506 |
| SKU #: | 2264259 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.669 in H x 1.862 in W x 0.551 in D |
| Number of Poles: | 6 |
| Spacing: | 0.3 in |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 14 mm / 0.551 inch |
| Height: | 17 mm / 0.669 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 6 |
| Weight: | 6.694 g |
| Width: | 47.3 mm / 1.862 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04044918772488 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$78.75 / 25Each
Typical price:$85.25 / Each
Quantity:
WAGO 236-506 PCB terminal block
Brand: Wago
Part Number: 236-506
Additional Description: WAGO-236-506 PCB TERMINAL BLOCK; 2.5 MM; PIN SPACING 7.5/7.62 MM; 6-POLE; CAGE CLAMP; COMMONING OPTION; 2,50 MM; GRAY 51144957 SPACING 7.5/7.62 MM; 6-POLE; CAGE CLAMP ; COMMONING OPTION; 2,50 MM ; GRAY 51144957
Catalog Description: PCB terminal block; 2.5 mm²; Pin spacing 7.5/7.62 mm; 6-pole; CAGE CLAMP®; commoning option; 2,50 mm²; gray
236-506 Item Features
- PCB terminal strips with CAGE CLAMP connection, screwdriver actuation parallel or perpendicular to conductor entry
- Mixed-color PCB terminal strips from factory
- Operating tools for factory wiring
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
236-506 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|Ex approvalSKU #2264259Part Number #236-506UNSPSC39121459UPC04044918772488
