Brand: Wago
WAGO 243-211 4-conductor modular PCB connector
Image Disclaimers Message
Brand: Wago
WAGO 243-211 4-conductor modular PCB connector
Brand: Wago
WAGO 243-211 4-conductor modular PCB connector
Part #:243-211
SKU #: 2297935
$25.00/50EA
Key Features
Part #:243-211
SKU #: 2297935
Brand: Wago
Approvals per: CSA, UL 1059
Color: Dark gray/red
Conductor diameter: 0.6 … 0.8 mm
Connection technology: PUSH WIRE®
Connector (connection type): For conductor
$25.00/50EA
Specifications
Brand: Wago
Approvals per: CSA, UL 1059
Color: Dark gray/red
Conductor diameter: 0.6 … 0.8 mm
Connection technology: PUSH WIRE®
Connector (connection type): For conductor
Contact material: Electrolytic copper (ECu)
Contact type (pluggable connector): Female connector/socket
Country of origin: DE

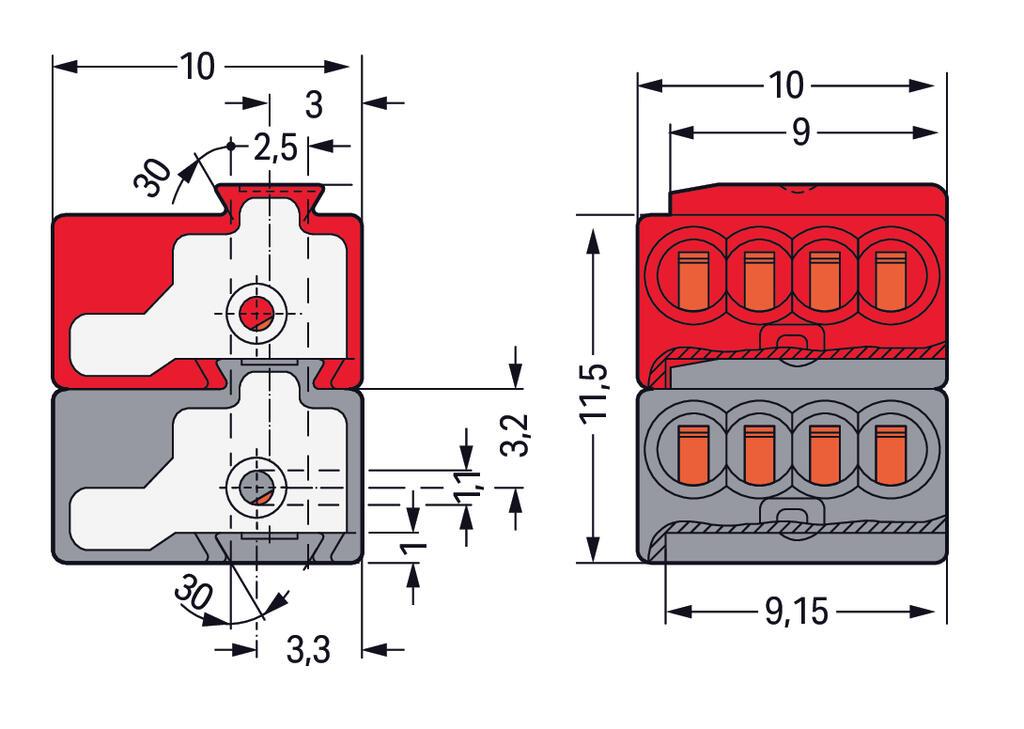

Depth: 10 mm / 0.394 inch
Height: 11.5 mm / 0.453 inch
Insulation material: Polyamide (PA66)
Number of connection types: 1
Rated current: 0.25
Total number of connection points: 8
Weight: 1.600 g
Width: 10 mm / 0.394 inch
UNSPSC: 39121410
UPC: 04044918442831
WAGO 243-211 4-conductor modular PCB connector
Additional Description: WAGO-243-211 MICRO PUSHWIRE 243 SERIES; 4-CONDUCTOR FOR INDIVIDUAL SOLDER PINS; 0.8 MM ; PIN SPACING 5.75 MM; 2-POLE; DARK GRAY/RED 51126101 FOR INDIVIDUAL SOLDER PINS; FOR KNX; 0.8 MM ; PIN SPACING 5.75 MM; 2-POLE; DARK GRAY/RED 51126101
Catalog Description: 4-conductor modular PCB connector; PUSH WIRE®; 0.8 mm Ø; Pin spacing 5.75 mm; 2-pole; for individual solder pins; for KNX; dark gray/red
