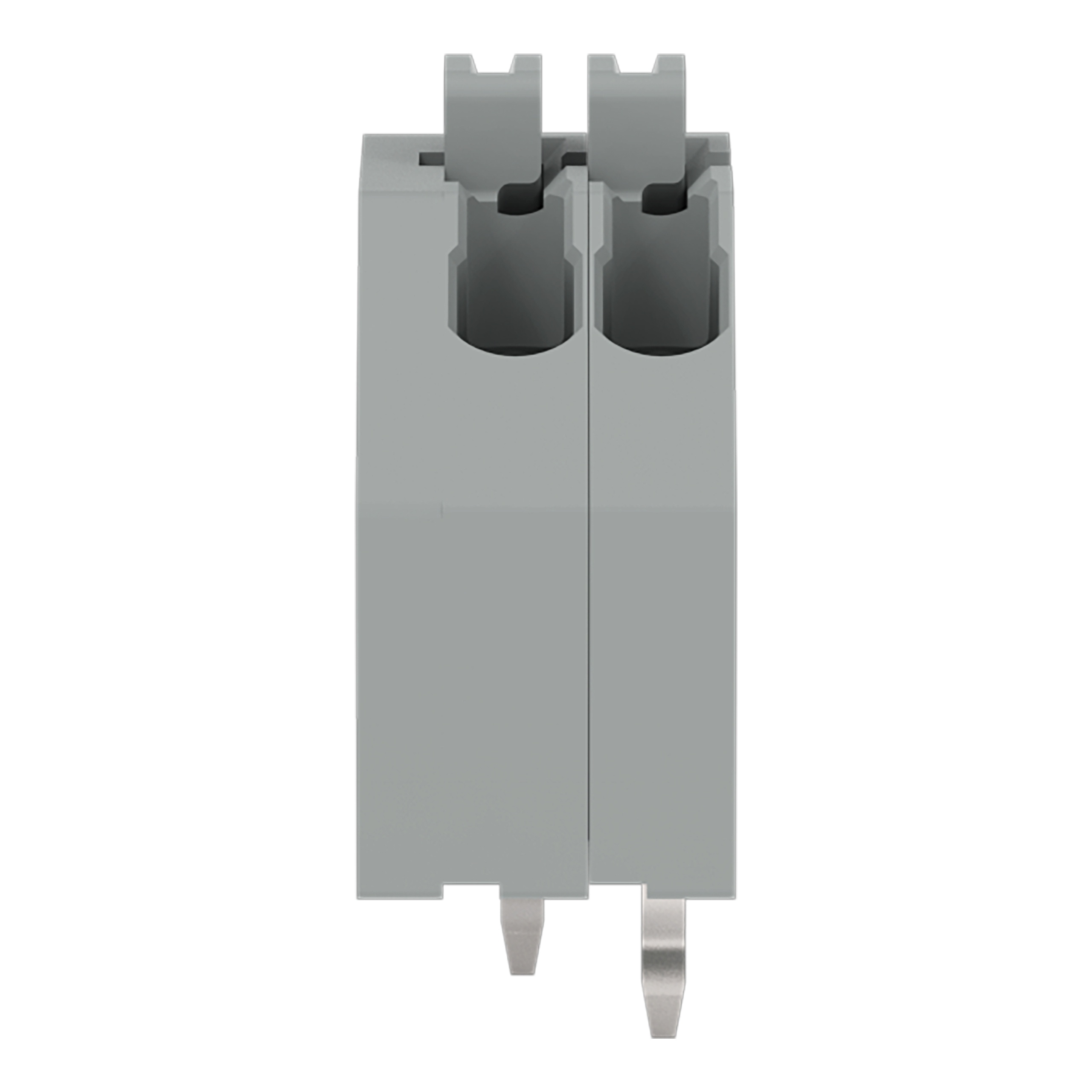

WAGO 250-402 PCB terminal block
Part Number # 250-402
SKU # 2237939
$63.00 / 180Each
Wago 250-402 Key Features
Brand: Wago
Part Number # 250-402
SKU #2237939
Amperage Rating: 4 A
Dimensions: 0.657 in H x 0.256 in W x 0.472 in D
Number of Poles: 2
Spacing: 0.098 in
Type: Push Button
Voltage Rating: 320 V
Wire Size: 24 to 20 AWG
Actuation type: Push-button
Approvals per: CSA, UL 1059
Color: Gray
Conductor diameter: 0.4 … 0.8 mm
Connection technology: Push-in CAGE CLAMP®
Connection type: Push-In
Contact material: Electrolytic copper (ECu)
Country of origin: CH
Depth: 12 mm / 0.472 inch
Height: 16.7 mm / 0.657 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Number of connection types: 1
Rated current: 0.166666666666667
Solid conductor: 0.14 … 0.5 mm² / 24 … 20 AWG
Total number of connection points: 2
Weight: 0.885 g
Width: 6.5 mm / 0.256 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04044918642774
$63.00 / 180Each
WAGO 250-402 PCB terminal block
Brand: Wago
Part Number: 250-402
Additional Description: WAGO-250-402 PCB TERMINAL BLOCK; PUSH-BUTTON; 0.5 MM ; PIN SPACING 2.5 MM; 2-POLE; PUSH-IN CAGE CLAMP ; 0,50 MM ; GRAY 51139929
Catalog Description: PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.5 mm; 2-pole; Push-in CAGE CLAMP®; 0,50 mm²; gray
250-402 Item Features
- Compact PCB terminal strips with push-buttons
- Termination/removal of fine-stranded conductors via push-buttons
- 45 deg conductor entry angle provides easy, space-saving wiring
- Custom color combinations
- Terminal strips also available with spacers upon request
250-402 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2237939Part Number #250-402UNSPSC39121410UPC04044918642774
