Part Number # 256-404
SKU # 2287197
Image Disclaimers Message
Brand: Wago
256-404

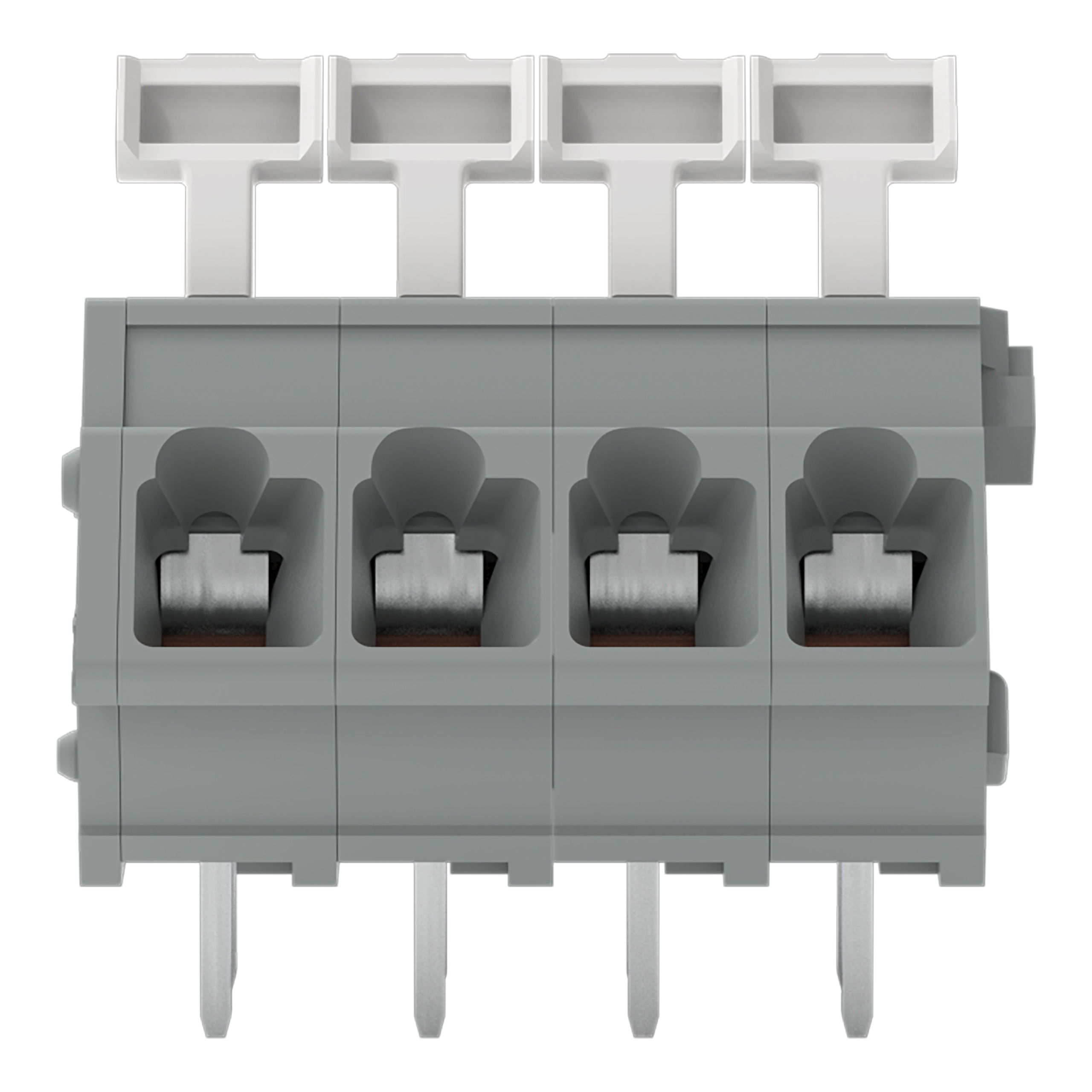

WAGO 256-404 PCB terminal block
Part Number # 256-404
SKU # 2287197
$134.50 / 50Each
Typical price:$145.50 / Each
Wago 256-404 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 256-404 |
| SKU #: | 2287197 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.874 in H x 0.902 in W x 0.693 in D |
| Number of Poles: | 4 |
| Spacing: | 0.2 in |
| Type: | Push Button |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 17.6 mm / 0.693 inch |
| Height: | 22.2 mm / 0.874 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 3.980 g |
| Width: | 22.9 mm / 0.902 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918756228 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$134.50 / 50Each
Typical price:$145.50 / Each
Quantity:
WAGO 256-404 PCB terminal block
Brand: Wago
Part Number: 256-404
Additional Description: WAGO-256-404 PCB TERMINAL BLOCK; PUSH-BUTTON; 2.5 MM; PIN SPACING 5/5.08 MM; 4-POLE; CAGE CLAMP; COMMONING OPTION; 2,50 MM; GRAY 51143423 4-POLE; CAGE CLAMP ; COMMONING OPTION; 2,50 MM ; GRAY 51143423
Catalog Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 4-pole; CAGE CLAMP®; commoning option; 2,50 mm²; gray
256-404 Application
Ideal for in-the-field wiring thanks to simplified push-button actuation256-404 Item Features
- PCB terminal blocks with push-buttons and CAGE CLAMP connection
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
- Convenient, tool-free operation
256-404 Standards
CSA|IEC/EN 60664-1|RoHS Compliant|Ex approvalSKU #2287197Part Number #256-404UNSPSC39121410UPC04044918756228
