Part Number # 256-524
SKU # 2293239
Image Disclaimers Message
256-524

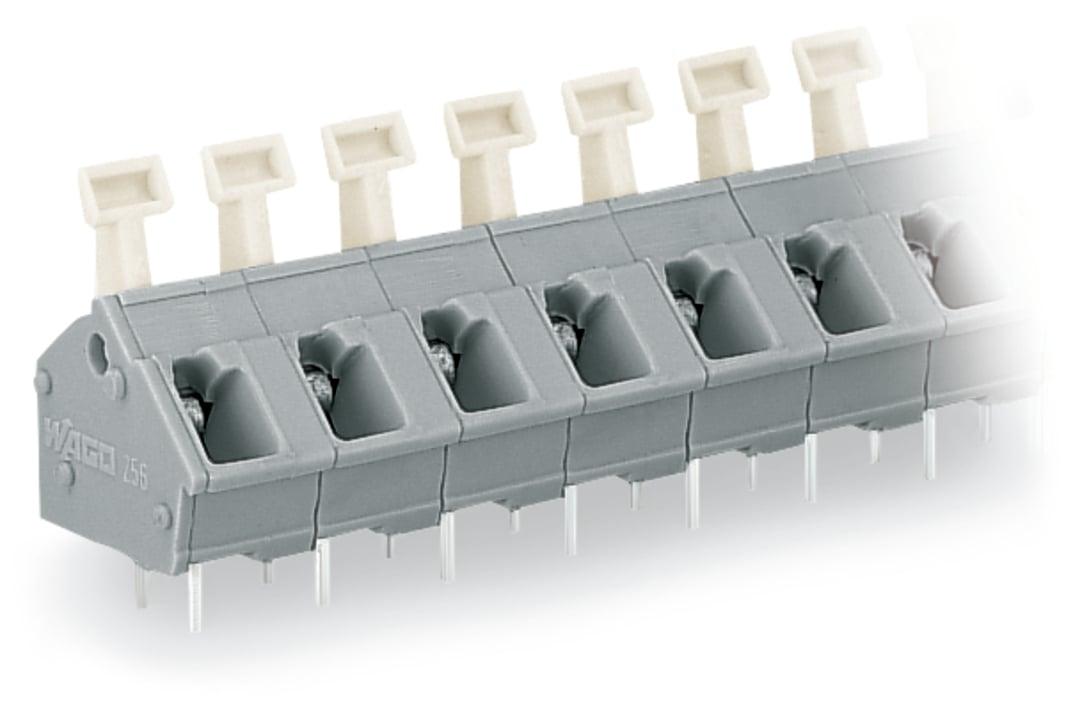

WAGO 256-524 PCB terminal block
Part Number # 256-524
SKU # 2293239
$75.85 / 5Each
Typical price:$82.15 / Each
Wago 256-524 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 256-524 |
| SKU #: | 2293239 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.874 in H x 7.201 in W x 0.693 in D |
| Number of Poles: | 24 |
| Series: | 256 |
| Spacing: | 0.3 in |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Cage Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | CH |
| Depth: | 17.6 mm / 0.693 inch |
| Height: | 22.2 mm / 0.874 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide 6.6 |
| Mounting type: | Through Hole, Through-Hole |
| Number of connection types: | 1 |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 24 |
| Weight: | 28.060 g |
| Width: | 182.9 mm / 7.201 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04044918808989 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$75.85 / 5Each
Typical price:$82.15 / Each
Quantity:
- WAGO, 256-524, Terminal Block, Series: 256, 630 V, 24 A, 24 Pole, 28 to 12 AWG Wire, 0.2 to 0.24 in Wire Strip Length, 0.3 in Spacing, Through-Hole Mounting, Cage Clamp Connection, -60 to 105 deg C, Polyamide 6.6, Gray, 0.874 in H x 7.201 in W x 0.693 in D Dimensions
256-524 Standards
RoHS CompliantSKU #2293239Part Number #256-524UNSPSC39121410UPC04044918808989
