260-162
WAGO 260-162 2-conductor terminal strip
Part Number # 260-162
SKU # 2255985
Wago 260-162 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 260-162 |
| SKU #: | 2255985 |
| Conductor Size: | 28 to 16 AWG |
| Conductor Type: | Copper |

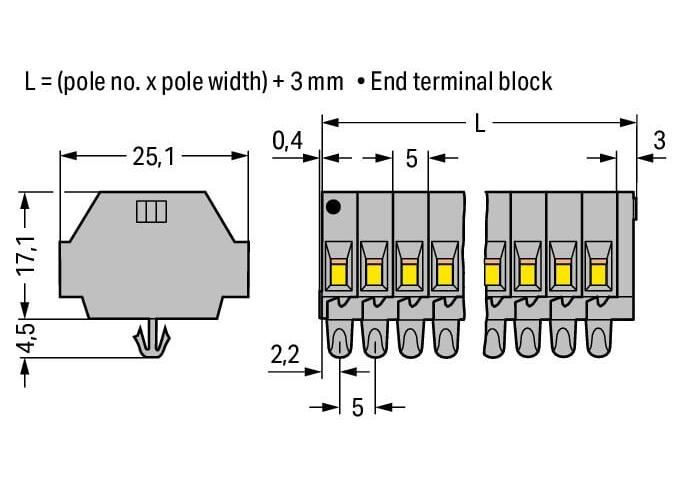

| Dimensions: | 0.673 in H x 2.496 in W x 0.988 in D |
| Specifications: | -60 to 105 degree C Continuous Operating Temperaure |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 25 mm / 0.984 inch |
| Length: | 0.31 to 0.35 in |
| Material: | Polyamide |
| Module width: | 5 mm / 0.197 inch |
| Mounting type: | Snap-in, Snap-in mounting foot |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 24 |
| Weight: | 20.375 g |
| Width: | 64.4 mm / 2.535 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918606998 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 260-162 2-conductor terminal strip
Brand: Wago
Part Number: 260-162
Additional Description: WAGO-260-162 (D) 2-CONDUCTOR TERMINAL STRIP; 12-POLE; WITHOUT PUSH-BUTTONS; WITH SNAP-IN MOUNTING FEET; FOR PLATE THICKNESS 0.6 - 1.2 MM; FIXING HOLE 3.5 MM ; 1.5 MM; CAGE CLAMP; 1,50 MM; GRAY 51137426 150mm GRA 12-POLE; WITHOUT PUSH-BUTTONS; WITH SNAP-IN MOUNTING FEET; FOR PLATE THICKNESS 0.6 - 1.2 MM; FIXING HOLE 3.5 MM ; 1.5 MM ; CAGE CLAMP ; 1,50 MM ; GRAY 51137426
Catalog Description: 2-conductor terminal strip; without push-buttons; with snap-in mounting feet; 12-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 1.5 mm²; CAGE CLAMP®; 1,50 mm²; gray
260-162 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2255985Part Number #260-162UNSPSC39121407UPC04044918606998
