260-261
WAGO 260-261 4-conductor terminal strip
Part Number # 260-261
SKU # 2295238
$320.75 / 25Each
Typical price:$347.50 / Each
Wago 260-261 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 260-261 |
| SKU #: | 2295238 |
| Conductor Size: | 28 to 16 AWG |
| Conductor Type: | Copper |

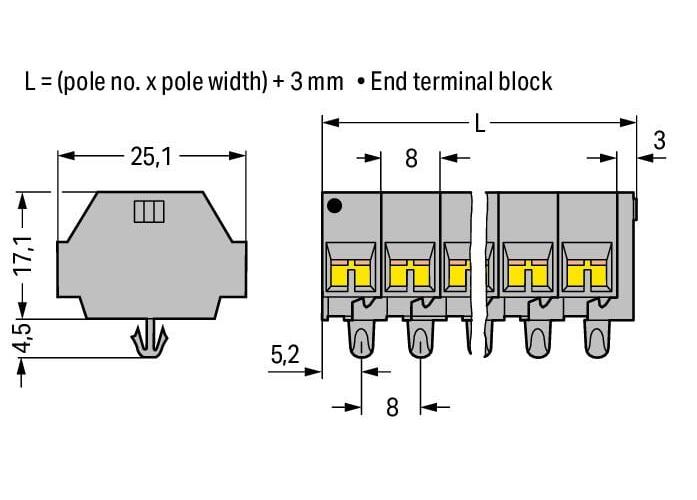

| Dimensions: | 0.673 in H x 3.583 in W x 0.988 in D |
| Specifications: | -60 to 105 degree C Continuous Operating Temperaure |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 25 mm / 0.984 inch |
| Length: | 0.31 to 0.35 in |
| Material: | Polyamide |
| Module width: | 8 mm / 0.315 inch |
| Mounting type: | Snap-in, Snap-in mounting foot |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 44 |
| Weight: | 30.234 g |
| Width: | 92.4 mm / 3.638 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918604604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$320.75 / 25Each
Typical price:$347.50 / Each
Quantity:
- WAGO, 260-261, Terminal Strip, Operating Tool, Copper Conductor, 28 to 16 AWG Conductor, 0.31 to 0.35 in Length, Specifications: -60 to 105 degree C Continuous Operating Temperaure, Snap-In Mounting, Polyamide, 0.673 in H x 3.583 in W x 0.988 in D Dimensions
260-261 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2295238Part Number #260-261UNSPSC39121407UPC04044918604604
