260-334

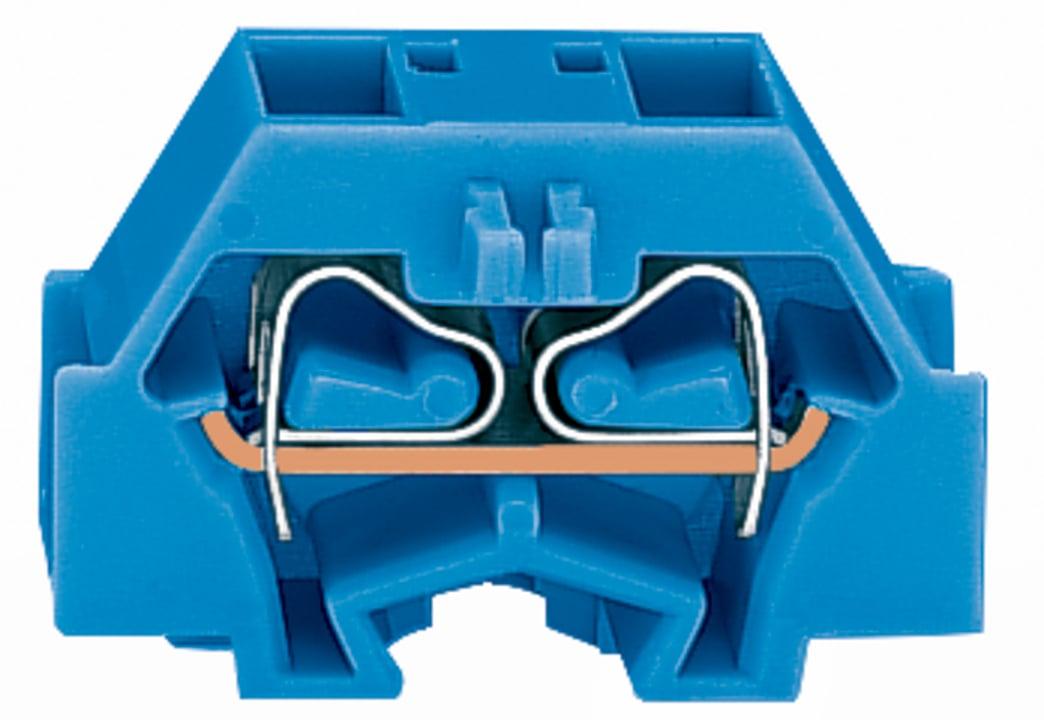

WAGO 260-334 4-conductor terminal block
Part Number # 260-334
SKU # 2354763
$57.69 / 50Each
Typical price:$62.50 / Each
Wago 260-334 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 260-334 |
| SKU #: | 2354763 |
| Amperage Rating: | 18 A |
| Dimensions: | 0.673 in H x 0.315 in W x 0.988 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 16 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CH |
| Depth: | 25 mm / 0.984 inch |
| Material: | Polyamide |
| Mounting type: | Flange, Mounting flange, Surface |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of connection points: | 4 |
| Weight: | 2.540 g |
| Width: | 8 mm / 0.315 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918592871 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$57.69 / 50Each
Typical price:$62.50 / Each
Quantity:
- WAGO, 260-334, Conductor Terminal Block, Operating Tool, 400 V, 18 A, 1 Pole, 28 to 16 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Surface Mounting, Clamp Connection, Polyamide, Blue, 0.673 in H x 0.315 in W x 0.988 in D Dimensions
260-334 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2354763Part Number #260-334UNSPSC39121407UPC04044918592871
