Brand: Wago
2604-1103

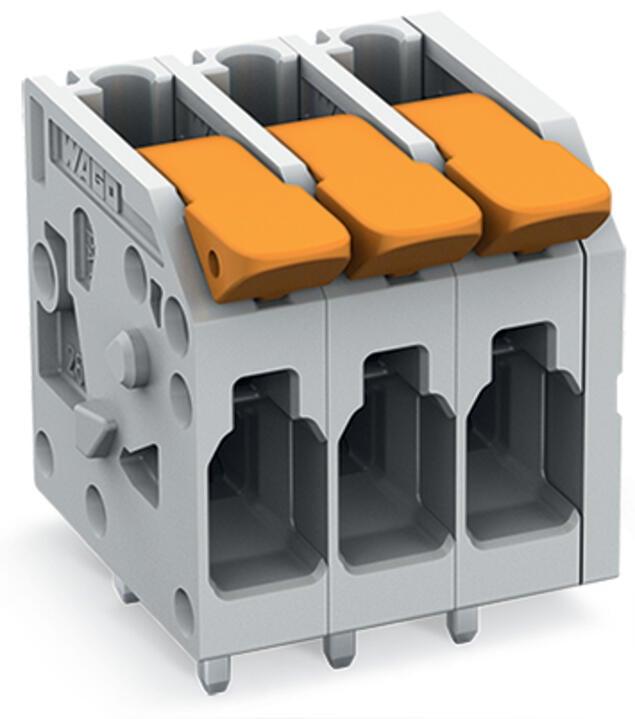

WAGO 2604-1103 Electrical Connector Assembly
Part Number # 2604-1103
SKU # 2396061
$2.92 / Each
Typical price:$3.16 / Each
Wago 2604-1103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2604-1103 |
| SKU #: | 2396061 |
| Amperage Rating: | 32 A |
| Dimensions: | 0.815 in H x 0.685 in W x 0.756 in D |
| Number of Poles: | 3 |
| Spacing: | 0.197 in |
| Type: | Lever |
| Wire Size: | 24 to 12 AWG |
| Color: | Gray |
| Connection type: | Push-In |
| Material: | Polyamide |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04055143564304 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.92 / Each
Typical price:$3.16 / Each
Quantity:
WAGO 2604-1103 Electrical Connector Assembly
Brand: Wago
Part Number: 2604-1103
Additional Description: WAGO-2604-1103 PCB TERMINAL BLOCK; LEVER; 4 MM ; 60325992 CAGE CLAMP ; 4,00 MM ; GRAY
Catalog Description: PCB terminal block; lever; 4 mm²; Pin spacing 5 mm; 3-pole; Push-in CAGE CLAMP®; 4,00 mm²; gray
2604-1103 Item Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
2604-1103 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2396061Part Number #2604-1103UNSPSC39121421UPC04055143564304
