Part Number # 2604-1104
SKU # 2356861
2604-1104

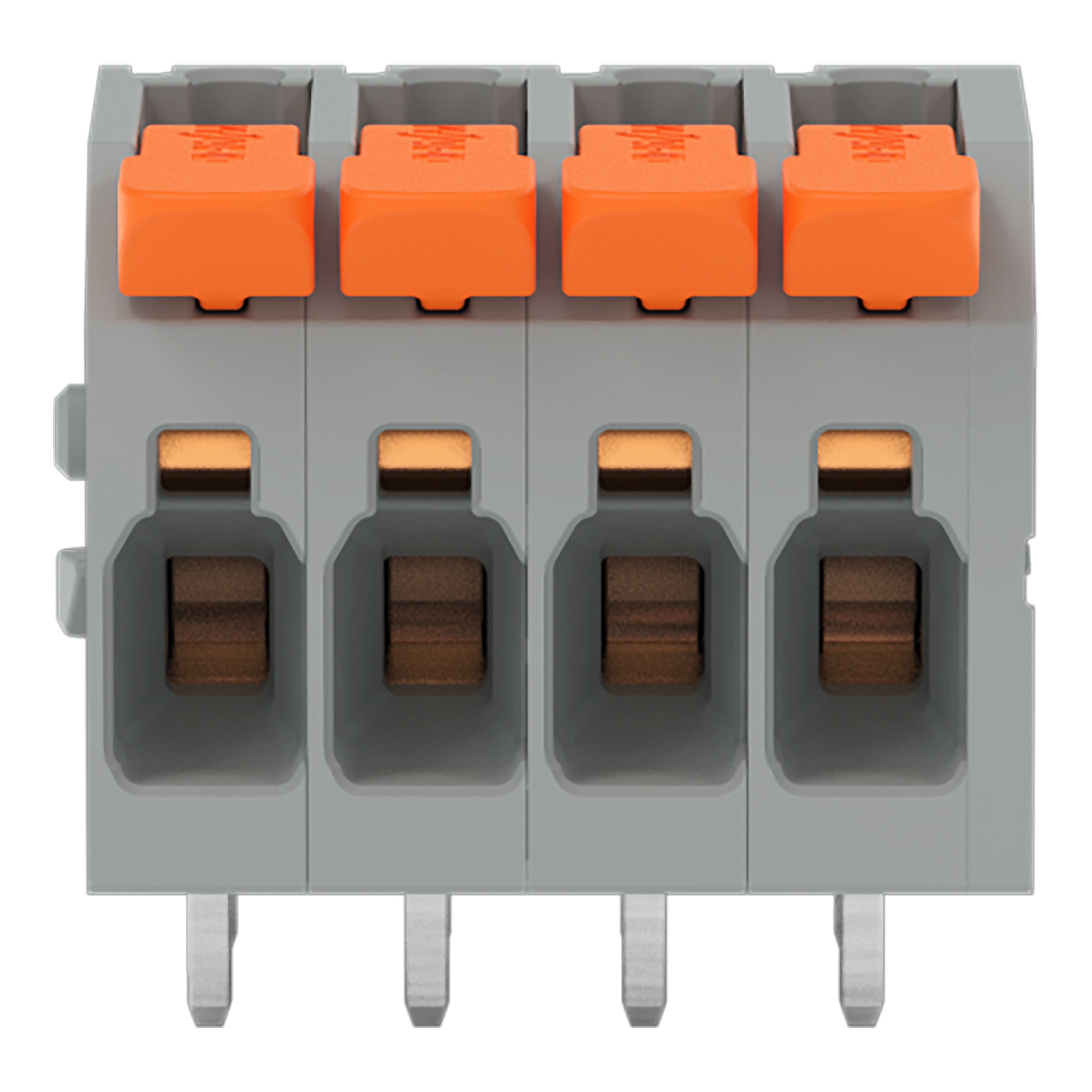

WAGO 2604-1104 PCB terminal block
Part Number # 2604-1104
SKU # 2356861
$3.76 / Each
Typical price:$4.20 / Each
Wago 2604-1104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2604-1104 |
| SKU #: | 2356861 |
| Dimensions: | 0.815 in H x 0.882 in W x 0.756 in D |
| Series: | 2604 |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Wire Size: | 24 to 12 AWG |
| Actuation type: | Lever |
| Approvals per: | CSA, UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Depth: | 19.2 mm / 0.756 inch |
| Height: | 20.7 mm / 0.815 inch |
| Insulation material: | Polyamide (PA66) |
| Number of connection types: | 1 |
| Rated current: | 32 A |
| Solid conductor: | 0.2 … 4 mm² / 24 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 6.220 g |
| Width: | 22.4 mm / 0.882 inch |
| UNSPSC: | 39121459 |
| UPC: | 04055143564311 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.76 / Each
Typical price:$4.20 / Each
Quantity:
- WAGO, 2604-1104, PCB Terminal Block, Series: 2604, 630 V, 32 A, 4 Pole, 24 to 12 AWG Wire, 0.35 to 0.43 in Wire Strip Length, 5 mm Spacing, Clamp Connection, -60 to 105 deg C, Polyamide, Gray, 0.815 in H x 0.882 in W x 0.756 in D Dimensions
2604-1104 Item Features
- PCB terminal blocks with Push-in Cage clamp connection and levers
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
2604-1104 Standards
RoHS Compliant|UL94SKU #2356861Part Number #2604-1104UNSPSC39121459UPC04055143564311
Image provided may only be a representation of final product and may include optional equipment
