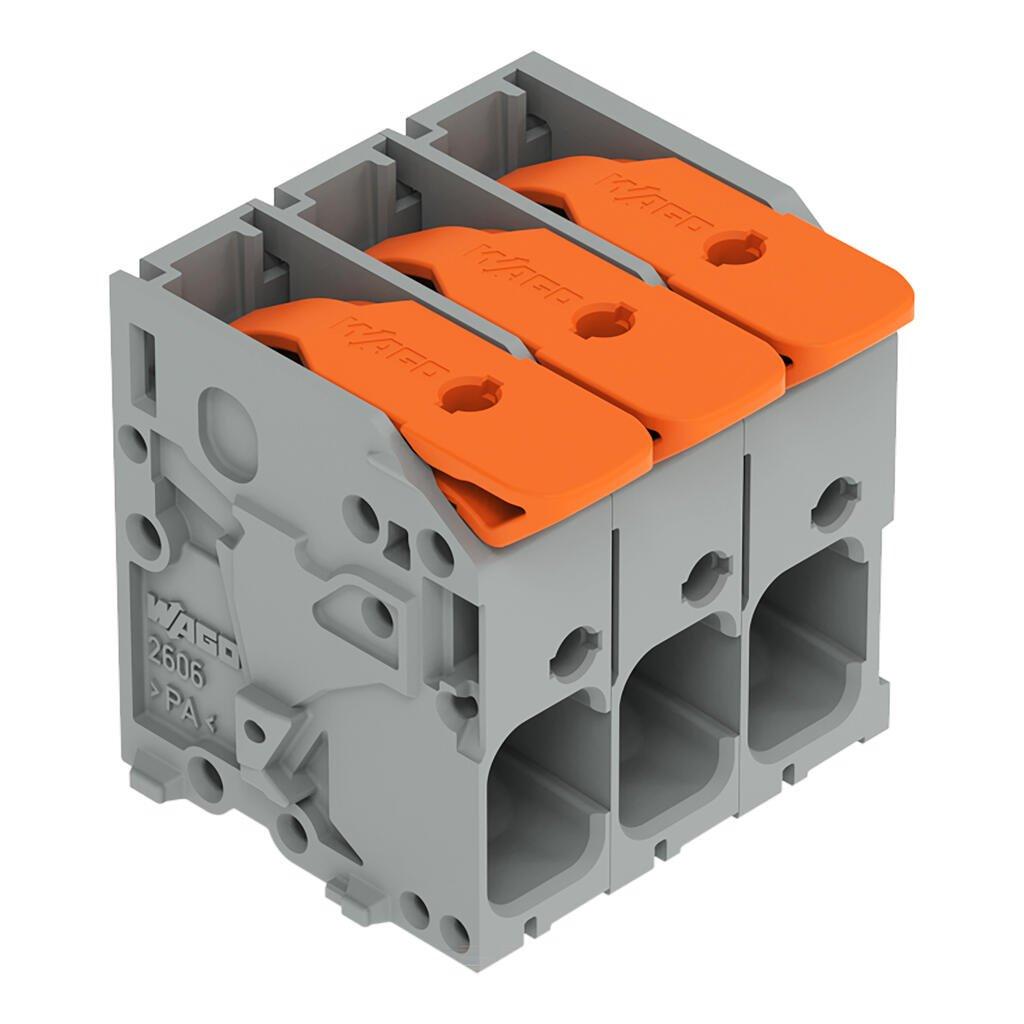

WAGO 2606-1103/010-000 PCB terminal block
Part Number # 2606-1103/010-000
SKU # 2356101
$429.78 / 80Each
Typical price:$465.60 / Each
Wago 2606-1103/010-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2606-1103/010-000 |
| SKU #: | 2356101 |
| Amperage Rating: | 41 A |
| Dimensions: | 1.102 in H x 0.998 in W x 0.957 in D |
| Number of Poles: | 3 |
| Spacing: | 0.295 in |
| Type: | Lever |
| Wire Size: | 24 to 8 AWG |
| Actuation type: | Lever |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 24.3 mm / 0.957 inch |
| Height: | 28 mm / 1.102 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 41 A |
| Solid conductor: | 0.2 … 10 mm² / 24 … 8 AWG |
| Weight: | 11.871 g |
| Width: | 25.35 mm / 0.998 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121459 |
| UPC: | 04055143662673 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$429.78 / 80Each
Typical price:$465.60 / Each
Quantity:
WAGO 2606-1103/010-000 PCB terminal block
Brand: Wago
Part Number: 2606-1103/010-000
Additional Description: WAGO-2606-1103/010-000 PCB TERMINAL BLOCK; LEVER; 6 MM ; PIN SPACING 7.5 MM; 3-POLE; PUSH-IN CAGE CLAMP ; 6,00 MM ; GRAY 60349924
Catalog Description: PCB terminal block; lever; 6 mm²; Pin spacing 7.5 mm; 3-pole; Push-in CAGE CLAMP®; 6,00 mm²; gray
2606-1103/010-000 Item Features
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
2606-1103/010-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2356101Part Number #2606-1103/010-000UNSPSC39121459UPC04055143662673
