Specifications
Brand: Wago
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Country of origin: DE

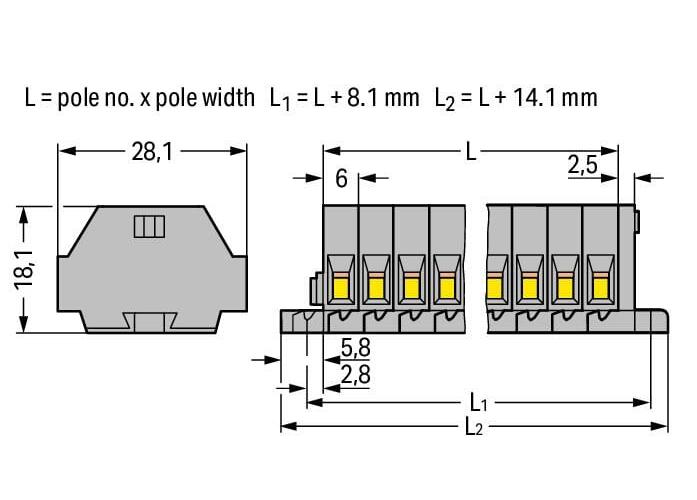

Depth: 28 mm / 1.102 inch
Module width: 6 mm / 0.236 inch
Mounting type: Mounting flange
Rated current: 24 A
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of connection points: 24
Weight: 28.700 g
Width: 86.5 mm / 3.406 inch
Wiring type: Side-entry wiring
UNSPSC: 39121407
UPC: 04044918617376
WAGO 261-112 2-conductor terminal strip
Additional Description: WAGO-261-112 2-CONDUCTOR TERMINAL STRIP; 12-POLE; WITHOUT PUSH-BUTTONS; WITH FIXING FLANGES; FOR SCREW OR SIMILAR MOUNTING TYPES; FIXING HOLE 3.2 MM ; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51138103 250mm GRA 12-POLE; WITHOUT PUSH-BUTTONS; WITH FIXING FLANGES; FOR SCREW OR SIMILAR MOUNTING TYPES; FIXING HOLE 3.2 MM ; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51138103
Catalog Description: 2-conductor terminal strip; without push-buttons; with fixing flanges; 12-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
