261-301/331-000

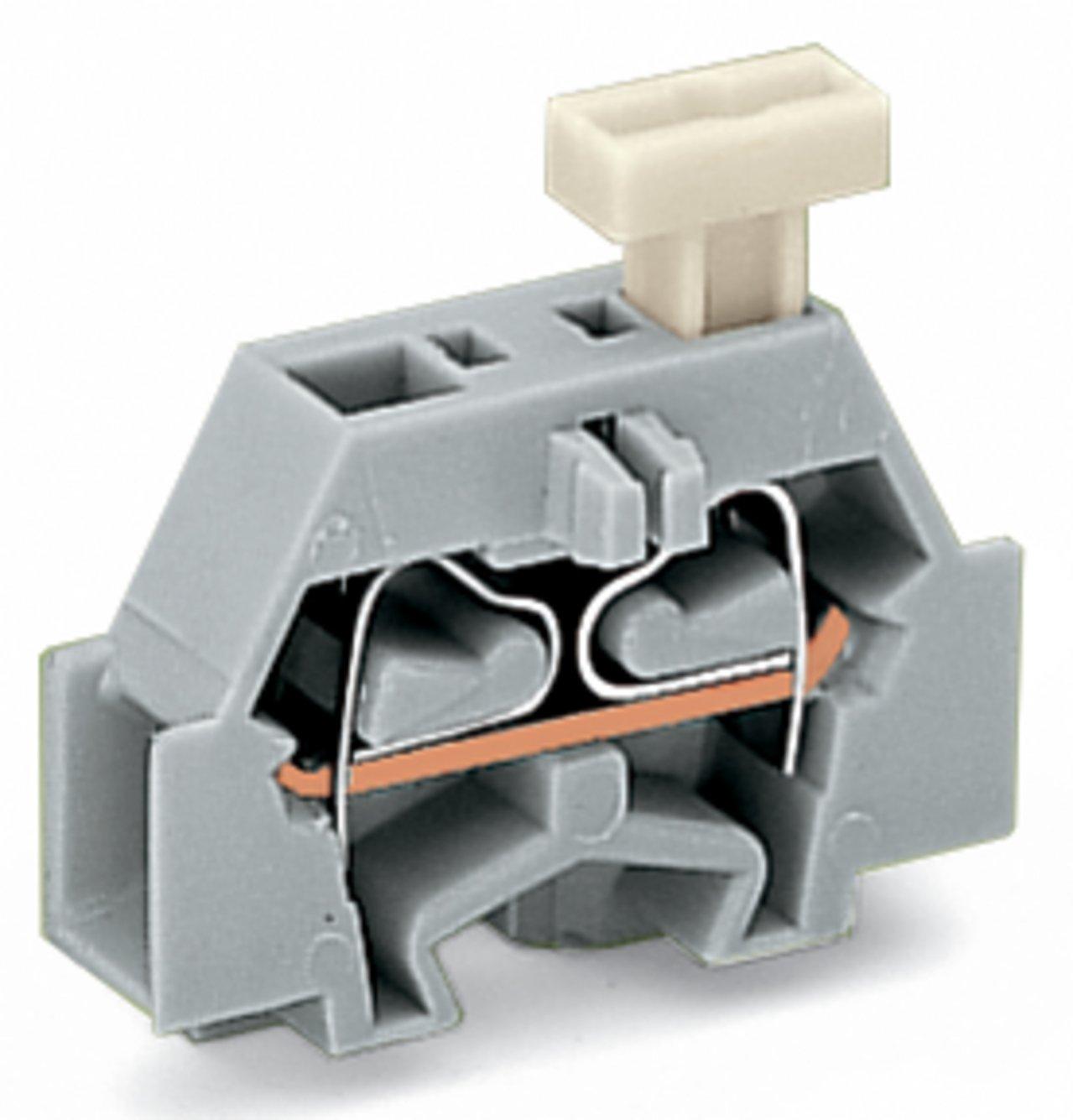

WAGO 261-301/331-000 2-conductor terminal block
Part Number # 261-301/331-000
SKU # 2210531
$45.00 / 50Each
Typical price:$48.55 / Each
Wago 261-301/331-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 261-301/331-000 |
| SKU #: | 2210531 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.917 in H x 0.236 in W x 1.106 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 14 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 28 mm / 1.102 inch |
| Material: | Polyamide |
| Mounting type: | Flange, Mounting flange, Surface |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of connection points: | 2 |
| Weight: | 2.400 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918617871 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$45.00 / 50Each
Typical price:$48.55 / Each
Quantity:
- WAGO, 261-301/331-000, Conductor Terminal Block, Operating Tool, 500 V, 24 A, 1 Pole, 28 to 14 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Surface Mounting, Clamp Connection, Polyamide, Gray, 0.917 in H x 0.236 in W x 1.106 in D Dimensions
261-301/331-000 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2210531Part Number #261-301/331-000UNSPSC39121407UPC04044918617871
