261-304/331-000

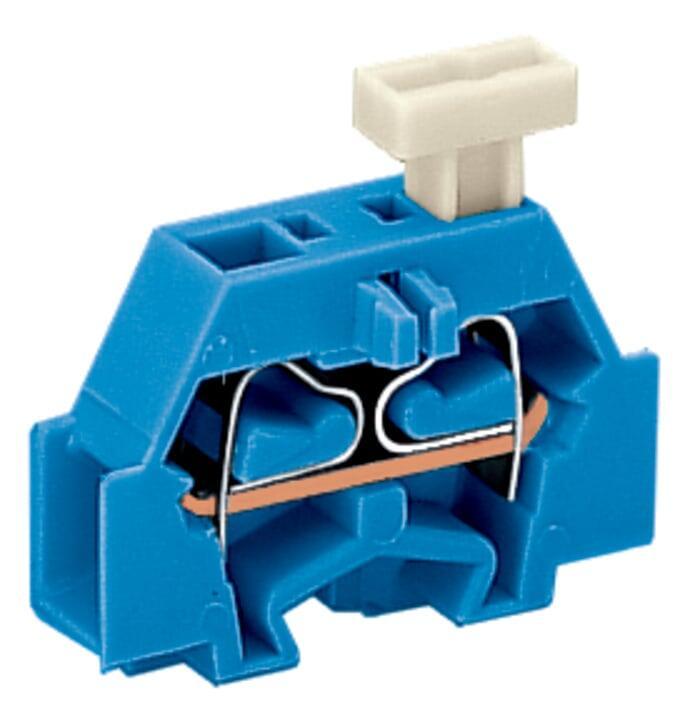

WAGO 261-304/331-000 2-conductor terminal block
Part Number # 261-304/331-000
SKU # 2296586
$52.50 / 50Each
Typical price:$57.00 / Each
Wago 261-304/331-000 Key Features
Brand: | Wago |
---|---|
Part Number # : | 261-304/331-000 |
SKU #: | 2296586 |
Amperage Rating: | 24 A |
Dimensions: | 0.917 in H x 0.236 in W x 1.106 in D |
Number of Poles: | 1 |
Type: | Operating Tool |
Wire Size: | 28 to 14 AWG |
Actuation type: | Operating tool |
Color: | Blue |
Connection technology: | CAGE CLAMP® |
Connection type: | Clamp |
Country of origin: | DE |
Depth: | 28 mm / 1.102 inch |
Material: | Polyamide |
Mounting type: | Flange, Mounting flange, Surface |
Rated current: | 24 A |
Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
Total number of connection points: | 2 |
Weight: | 2.494 g |
Width: | 6 mm / 0.236 inch |
Wiring type: | Side-entry wiring |
Manufacturer Name: | WAGO Corporation |
UNSPSC: | 39121407 |
UPC: | 04044918619660 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$52.50 / 50Each
Typical price:$57.00 / Each
Quantity:
- WAGO, 261-304/331-000, Conductor Terminal Block, Operating Tool, 500 V, 24 A, 1 Pole, 28 to 14 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Surface Mounting, Clamp Connection, Polyamide, Blue, 0.917 in H x 0.236 in W x 1.106 in D Dimensions
261-304/331-000 Application
Suitable for Ex i applications261-304/331-000 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2296586Part Number #261-304/331-000UNSPSC39121407UPC04044918619660
