Brand: Wago
261-331/332-000

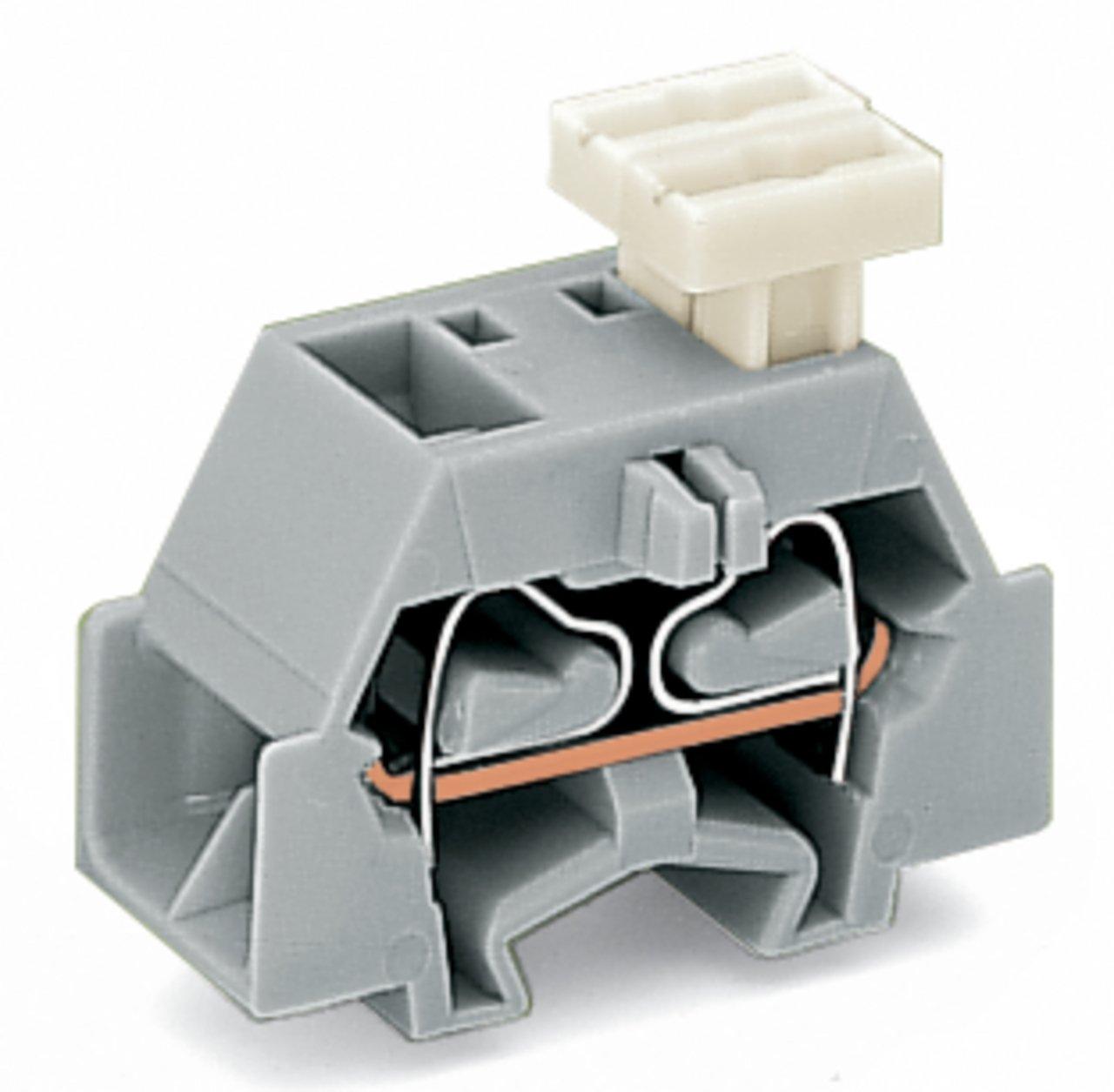

WAGO 261-331/332-000 4-conductor terminal block
Part Number # 261-331/332-000
SKU # 2296406
$82.00 / 50Each
Typical price:$89.00 / Each
Wago 261-331/332-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 261-331/332-000 |
| SKU #: | 2296406 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.917 in H x 0.394 in W x 1.106 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 14 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | DE |
| Depth: | 28 mm / 1.102 inch |
| Material: | Polyamide |
| Mounting type: | Flange, Mounting flange, Surface |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of connection points: | 4 |
| Weight: | 4.130 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918612425 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.00 / 50Each
Typical price:$89.00 / Each
Quantity:
- WAGO, 261-331/332-000, Conductor Terminal Block, Operating Tool, 500 V, 24 A, 1 Pole, 28 to 14 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Surface Mounting, Clamp Connection, Polyamide, Gray, 0.917 in H x 0.394 in W x 1.106 in D Dimensions
261-331/332-000 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2296406Part Number #261-331/332-000UNSPSC39121407UPC04044918612425
