262-109
WAGO 262-109 2-conductor terminal strip
Part Number # 262-109
SKU # 2236490
Wago 262-109 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 262-109 |
| SKU #: | 2236490 |
| Conductor Size: | 28 to 12 AWG |
| Conductor Type: | Copper |

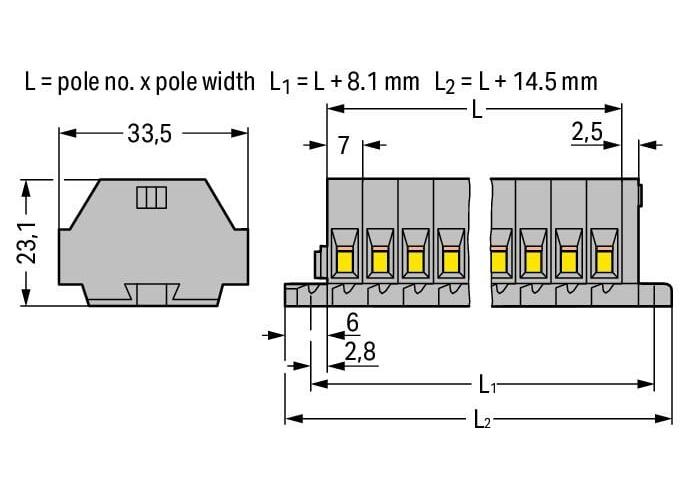

| Dimensions: | 0.909 in H x 3.047 in W x 1.319 in D |
| Specifications: | -60 to 105 degree C Continuous Operating Temperaure |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 33.5 mm / 1.319 inch |
| Length: | 0.35 to 0.39 in |
| Material: | Polyamide |
| Module width: | 7 mm / 0.276 inch |
| Mounting type: | Flange, Mounting flange |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 18 |
| Weight: | 39.402 g |
| Width: | 77.5 mm / 3.051 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918640237 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 262-109 2-conductor terminal strip
Brand: Wago
Part Number: 262-109
Additional Description: WAGO-262-109 2-CONDUCTOR TERMINAL STRIP; 9-POLE; WITHOUT PUSH-BUTTONS; WITH FIXING FLANGES; FOR SCREW OR SIMILAR MOUNTING TYPES; FIXING HOLE 3.2 MM ; 4 MM; CAGE CLAMP; 4,00 MM; GRAY 51139707 GRA WITHOUT PUSH-BUTTONS; WITH FIXING FLANGES; FOR SCREW OR SIMILAR MOUNTING TYPES; FIXING HOLE 3.2 MM ; 4 MM ; CAGE CLAMP ; 4,00 MM ; GRAY 51139707
Catalog Description: 2-conductor terminal strip; without push-buttons; with fixing flanges; 9-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 4 mm²; CAGE CLAMP®; 4,00 mm²; gray
262-109 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2236490Part Number #262-109UNSPSC39121407UPC04044918640237
