Part Number # 262-306
SKU # 2295235
Image Disclaimers Message
262-306

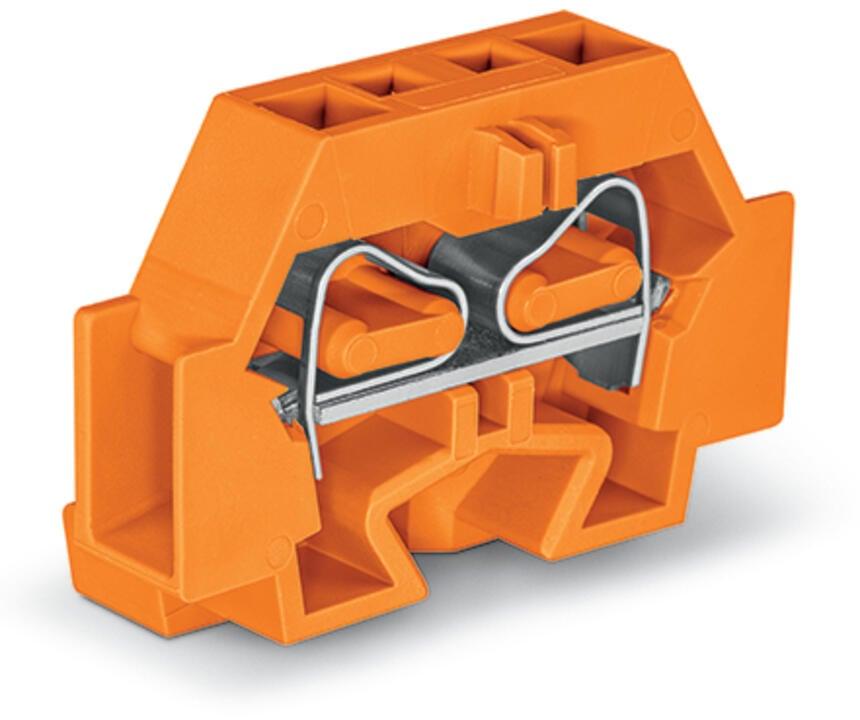

WAGO 262-306 2-conductor terminal block
Part Number # 262-306
SKU # 2295235
$76.00 / 50Each
Typical price:$82.50 / Each
Wago 262-306 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 262-306 |
| SKU #: | 2295235 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.909 in H x 0.276 in W x 1.319 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Orange |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 33.5 mm / 1.319 inch |
| Material: | Polyamide |
| Mounting type: | Flange, Mounting flange, Surface |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 4.099 g |
| Width: | 7 mm / 0.276 inch |
| Wiring type: | Side-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918639682 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$76.00 / 50Each
Typical price:$82.50 / Each
Quantity:
- WAGO, 262-306, Conductor Terminal Block, Operating Tool, 690 V, 24 A, 1 Pole, 28 to 12 AWG Wire, 0.35 to 0.39 in Wire Strip Length, Surface Mounting, Clamp Connection, Polyamide, Orange, 0.909 in H x 0.276 in W x 1.319 in D Dimensions
262-306 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2295235Part Number #262-306UNSPSC39121407UPC04044918639682
