Part Number # 2624-1103
SKU # 2370491
2624-1103

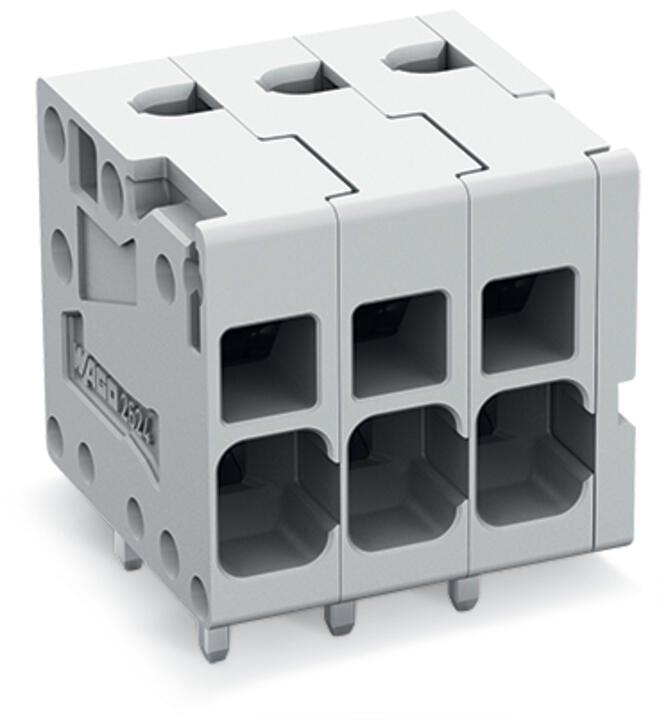

WAGO 2624-1103 PCB terminal block
Part Number # 2624-1103
SKU # 2370491
$2.36 / Each
Typical price:$2.56 / Each
Wago 2624-1103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2624-1103 |
| SKU #: | 2370491 |
| Amperage Rating: | 41 A |
| Dimensions: | 0.764 in H x 0.65 in W x 0.642 in D |
| Number of Poles: | 3 |
| Spacing: | 0.197 in |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Actuation type: | Operating tool |
| Approvals per: | CSA, UL 1059 |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | DE |
| Depth: | 16.3 mm / 0.642 inch |
| Height: | 19.4 mm / 0.764 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Mounting type: | Feed Through, Feed-through mounting, Through-Hole |
| Number of connection types: | 1 |
| Rated current: | 41 A |
| Solid conductor: | 0.2 … 6 mm² / 24 … 10 AWG |
| Total number of connection points: | 3 |
| Weight: | 4.850 g |
| Width: | 16.5 mm / 0.65 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04055143578318 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2.36 / Each
Typical price:$2.56 / Each
Quantity:
WAGO 2624-1103 PCB terminal block
Brand: Wago
Part Number: 2624-1103
Additional Description: WAGO-2624-1103 PCB TERMINAL BLOCK; 4 MM; PIN SPACING 5 MM; 3-POLE; PUSH-IN CAGE CLAMP; 4,00 MM; GRAY 60329558 CLAMP ; 4,00 MM ; GRAY
Catalog Description: PCB terminal block; 4 mm²; Pin spacing 5 mm; 3-pole; Push-in CAGE CLAMP®; 4,00 mm²; gray
2624-1103 Application
Ideal for panel feedthrough applications via operation parallel to conductor entry2624-1103 Item Features
- PCB terminal blocks with Push-in CAGE CLAMP connection
- Push-in termination of solid and ferruled conductors
- Testing can be performed both parallel and perpendicular to conductor entry
2624-1103 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2370491Part Number #2624-1103UNSPSC39121407UPC04055143578318
Image provided may only be a representation of final product and may include optional equipment
