Part Number # 2624-3104
SKU # 2417785
Image Disclaimers Message
Brand: Wago
2624-3104

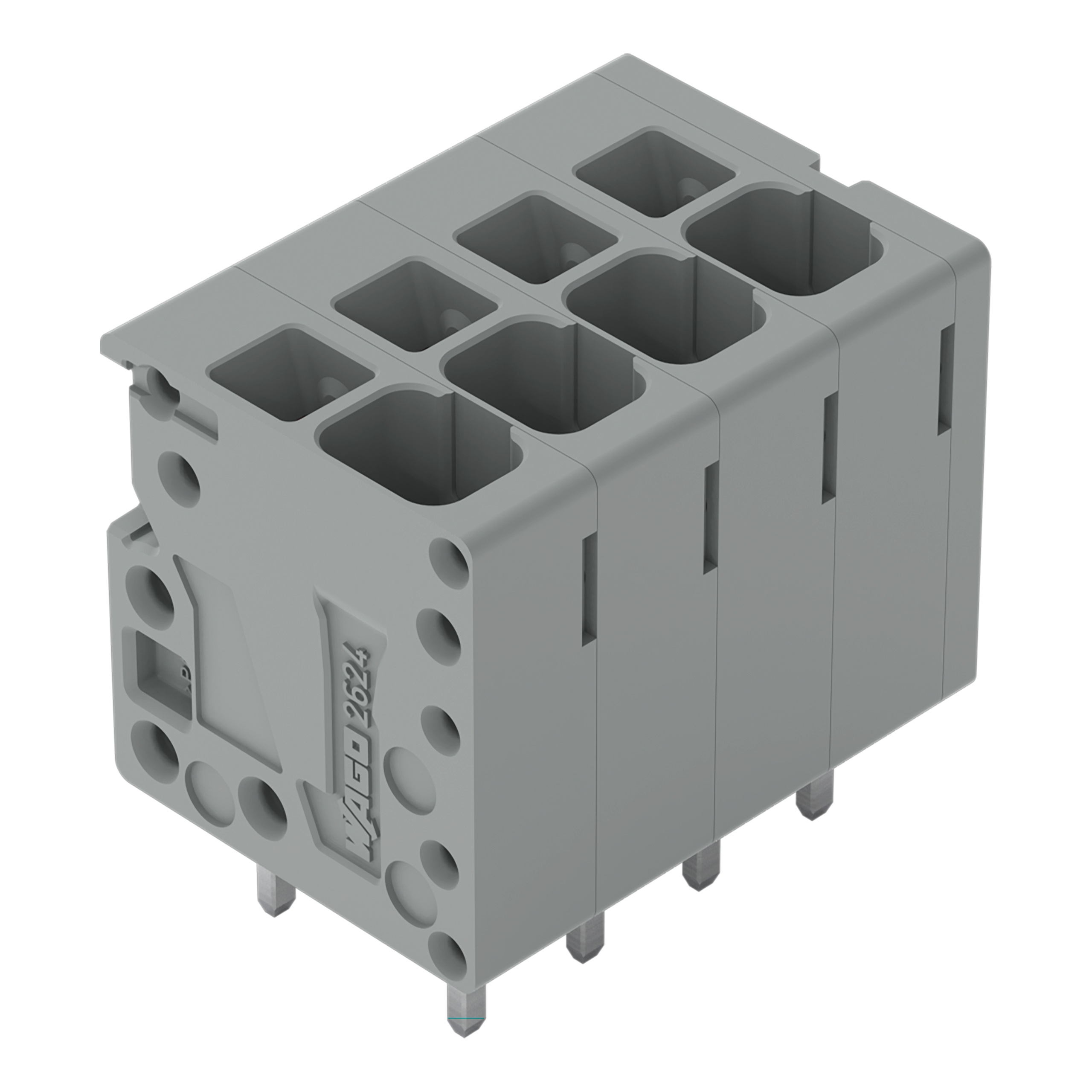

WAGO 2624-3104 Electrical Connector Assembly
Part Number # 2624-3104
SKU # 2417785
$3.15 / Each
Typical price:$3.41 / Each
Wago 2624-3104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2624-3104 |
| SKU #: | 2417785 |
| Amperage Rating: | 41 A |
| Dimensions: | 0.799 in H x 0.846 in W x 0.606 in D |
| Number of Poles: | 4 |
| Spacing: | 0.197 in |
| Type: | Operating Tool |
| Wire Size: | 24 to 10 AWG |
| Color: | Gray |
| Connection type: | Push-In |
| Material: | Polyamide |
| Mounting type: | Feed Through, Through-Hole |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121421 |
| UPC: | 04055143578769 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3.15 / Each
Typical price:$3.41 / Each
Quantity:
- WAGO, 2624-3104, PCB Terminal Block, Operating Tool, 630 V, 41 A, 4 Pole, 24 to 10 AWG Wire, 0.39 to 0.47 in Wire Strip Length, 0.197 in Spacing, Through-Hole Mounting, Push-In Connection, Polyamide, Gray, 0.799 in H x 0.846 in W x 0.606 in D Dimensions
2624-3104 Application
Ideal for panel feedthrough applications via operation parallel to conductor entry2624-3104 Item Features
- PCB terminal blocks with Push-in CAGE CLAMP connection
- Push-in termination of solid and ferruled conductors
- Testing can be performed both parallel and perpendicular to conductor entry
2624-3104 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2417785Part Number #2624-3104UNSPSC39121421UPC04055143578769
