Part Number # 264-160
SKU # 2227802
Image Disclaimers Message
264-160
WAGO 264-160 2-conductor terminal strip
Part Number # 264-160
SKU # 2227802
Wago 264-160 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 264-160 |
| SKU #: | 2227802 |
| Conductor Size: | 28 to 12 AWG |
| Conductor Type: | Copper |

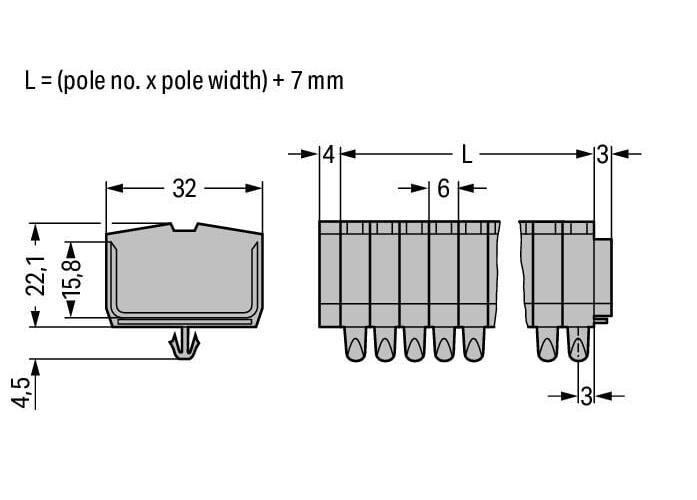

| Dimensions: | 0.87 in H x 2.638 in W x 1.26 in D |
| Specifications: | 20 Clamping Unit |
| Type: | Operating Tool |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 32 mm / 1.26 inch |
| Length: | 0.31 to 0.35 in |
| Material: | Polyamide |
| Module width: | 6 mm / 0.236 inch |
| Mounting type: | Snap-in, Snap-in mounting foot |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 20 |
| Weight: | 40.540 g |
| Width: | 67 mm / 2.638 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918423694 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 264-160 2-conductor terminal strip
Brand: Wago
Part Number: 264-160
Additional Description: WAGO-264-160 2-CONDUCTOR TERMINAL STRIP; 10-POLE; WITHOUT PUSH-BUTTONS; WITH SNAP-IN MOUNTING FEET; FOR PLATE THICKNESS 0.6 - 1.2 MM; FIXING HOLE 3.5 MM ; 2.5 MM; CAGE CLAMP; 2,50 MM; GRAY 51124362 250mm GRA 10-POLE; WITHOUT PUSH-BUTTONS; WITH SNAP-IN MOUNTING FEET; FOR PLATE THICKNESS 0.6 - 1.2 MM; FIXING HOLE 3.5 MM ; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51124362
Catalog Description: 2-conductor terminal strip; without push-buttons; with snap-in mounting feet; 10-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
264-160 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2227802Part Number #264-160UNSPSC39121407UPC04044918423694
