Part Number # 264-311
SKU # 2366305
Brand: Wago
264-311

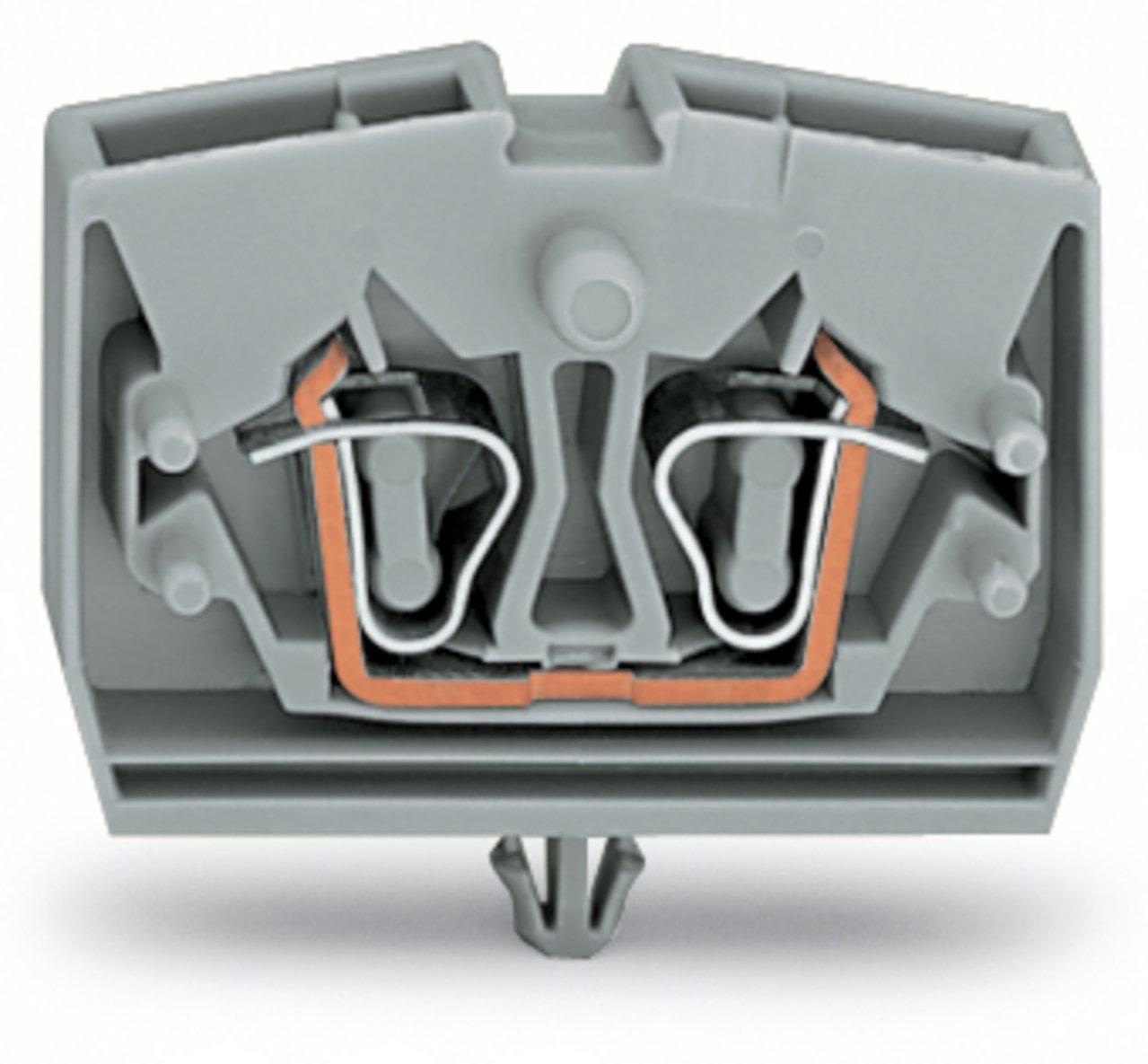

WAGO 264-311 2-conductor terminal block
Part Number # 264-311
SKU # 2366305
$1.36 / Each
Typical price:$1.47 / Each
Wago 264-311 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 264-311 |
| SKU #: | 2366305 |
| Amperage Rating: | 24 A |
| Dimensions: | 0.87 in H x 0.236 in W x 1.26 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CH |
| Depth: | 32 mm / 1.26 inch |
| Material: | Polyamide |
| Mounting type: | Snap-Fit, Snap-in, Snap-in mounting foot |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 3.854 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918415194 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.36 / Each
Typical price:$1.47 / Each
Quantity:
WAGO 264-311 2-conductor terminal block
Brand: Wago
Part Number: 264-311
Additional Description: WAGO-264-311 2-CONDUCTOR TERMINAL BLOCK; WITHOUT PUSH-BUTTONS; WITH SNAP-IN MOUNTING FOOT; FOR PLATE THICKNESS 0.6 - 1.2 MM; FIXING HOLE 3.5 MM ; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GRAY 51123575
Catalog Description: 2-conductor terminal block; without push-buttons; with snap-in mounting foot; 1-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray
264-311 Standards
CSA 22.2 No 158|RoHS CompliantSKU #2366305Part Number #264-311UNSPSC39121407UPC04044918415194
Image provided may only be a representation of final product and may include optional equipment
