Part Number # 264-317
SKU # 2377606
264-317

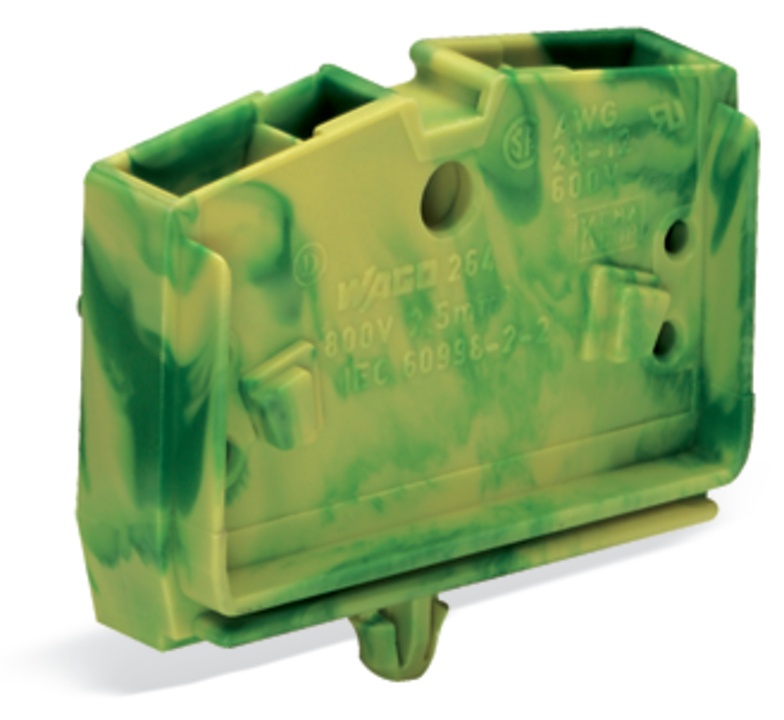

WAGO 264-317 2-conductor terminal block
Part Number # 264-317
SKU # 2377606
Wago 264-317 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 264-317 |
| SKU #: | 2377606 |
| Dimensions: | 0.87 in H x 0.236 in W x 1.26 in D |
| Number of Poles: | 1 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CH |
| Depth: | 32 mm / 1.26 inch |
| Material: | Polyamide |
| Mounting type: | Snap-Fit, Snap-in, Snap-in mounting foot |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 3.890 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918415255 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 264-317 2-conductor terminal block
Brand: Wago
Part Number: 264-317
Additional Description: WAGO-264-317 2-CONDUCTOR TERMINAL BLOCK; WITHOUT PUSH-BUTTONS; WITH SNAP-IN MOUNTING FOOT; FOR PLATE THICKNESS 0.6 - 1.2 MM; FIXING HOLE 3.5 MM ; 2.5 MM ; CAGE CLAMP ; 2,50 MM ; GREEN-YELLOW 51123581 FOOT, GREEN-YELLOW
Catalog Description: 2-conductor terminal block; without push-buttons; with snap-in mounting foot; 1-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; green-yellow
264-317 Standards
RoHS CompliantSKU #2377606Part Number #264-317UNSPSC39121407UPC04044918415255
Image provided may only be a representation of final product and may include optional equipment
