Part Number # 264-701
SKU # 2238602
Image Disclaimers Message
264-701

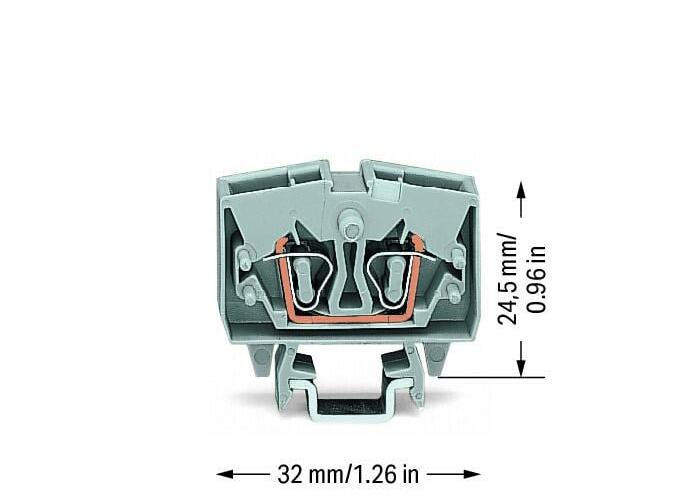

WAGO 264-701 2-conductor miniature through terminal block
Part Number # 264-701
SKU # 2238602
$138.00 / 100Each
Typical price:$150.00 / Each
Wago 264-701 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 264-701 |
| SKU #: | 2238602 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.26 in H x 0.236 in W x 0.965 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CH |
| Depth: | 32 mm / 1.26 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-15 rail |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 3.744 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918415354 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$138.00 / 100Each
Typical price:$150.00 / Each
Quantity:
WAGO 264-701 2-conductor miniature through terminal block
Brand: Wago
Part Number: 264-701
Additional Description: WAGO-264-701 2-CONDUCTOR MINIATURE THROUGH TERMINAL BLOCK; 2.5 MM; WITH TEST OPTION; CENTER MARKING; FOR DIN-15 RAIL; CAGE CLAMP; 2,50 MM; GRAY 51123591 TERMINAL BLOCK; 2.5 MM ; WITH TEST RAIL; CAGE CLAMP ; 2,50 MM ; GRAY 51123591
Catalog Description: 2-conductor miniature through terminal block; 2.5 mm²; with test option; center marking; for DIN-15 rail; CAGE CLAMP®; 2,50 mm²; gray
264-701 Standards
CSA 22.2 No 158|DIN 15|RoHS CompliantSKU #2238602Part Number #264-701UNSPSC39121407UPC04044918415354
