Brand: Wago
264-704

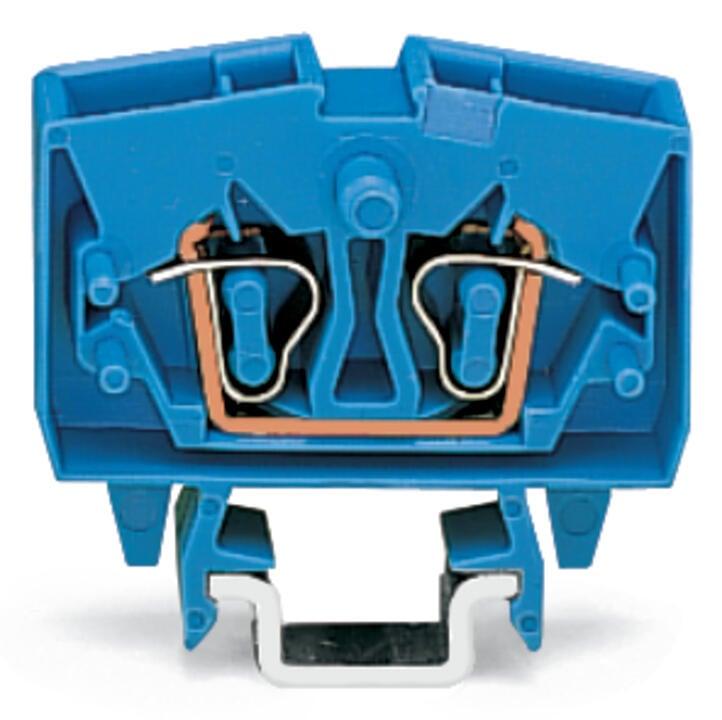

WAGO 264-704 2-conductor miniature through terminal block
Part Number # 264-704
SKU # 2306210
$149.00 / 100Each
Typical price:$161.00 / Each
Wago 264-704 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 264-704 |
| SKU #: | 2306210 |
| Amperage Rating: | 24 A |
| Dimensions: | 1.26 in H x 0.236 in W x 0.965 in D |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Blue |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CH |
| Depth: | 32 mm / 1.26 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-15 rail |
| Rated current: | 24 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 2 |
| Weight: | 3.722 g |
| Width: | 6 mm / 0.236 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04044918415378 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$149.00 / 100Each
Typical price:$161.00 / Each
Quantity:
- WAGO, 264-704, Miniature Through Terminal Block, Operating Tool, 800 V, 24 A, 1 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, -35 to 85 deg C, Polyamide, Blue, 1.26 in H x 0.236 in W x 0.965 in D Dimensions
264-704 Application
Suitable for Ex i applications264-704 Standards
CSA 22.2 No 158|DIN 15|RoHS CompliantSKU #2306210Part Number #264-704UNSPSC39121407UPC04044918415378
