Brand: Wago

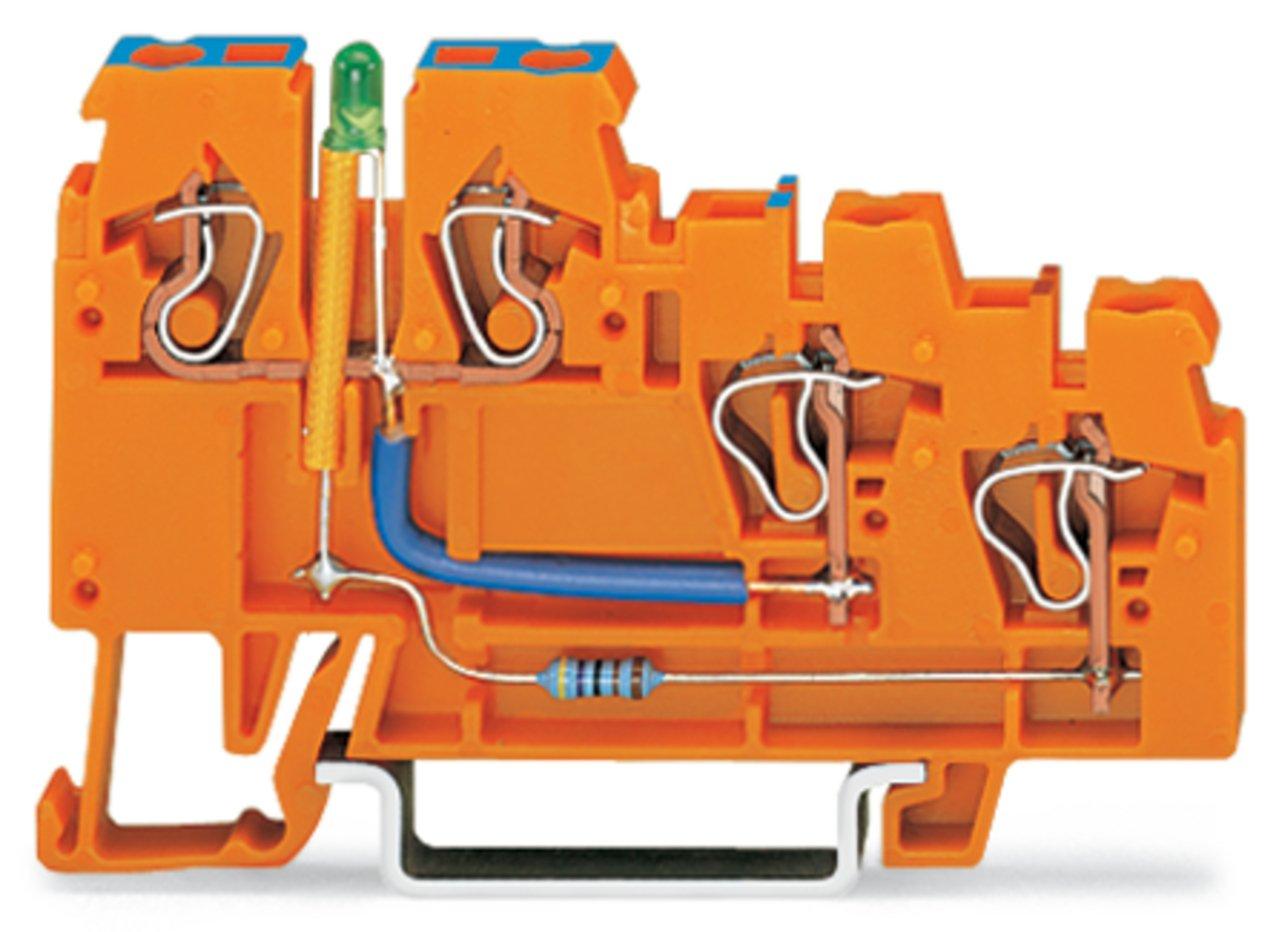

WAGO 270-564/281-483 270 3-Conductor Terminal Block
Image Disclaimers Message
Brand: Wago
WAGO 270-564/281-483 270 3-Conductor Terminal Block
Brand: Wago
WAGO 270-564/281-483 270 3-Conductor Terminal Block
Part #:270-564/281-483
SKU #: 1446537
$13.62/EA
Key Features
Part #:270-564/281-483
SKU #: 1446537
Brand: Wago
Amperage Rating: 4.8 mA
Dimensions: 2.67 in H x 0.19 in W x 1.53 in D
Number of Poles: 4
Series: 270
Temperature Rating (Degrees F): -35 to 85 deg C
$13.62/EA
- 4 Clamping Points
- 3 Potentials
- Front-entry wiring
Specifications
Brand: Wago
Amperage Rating: 4.8 mA
Dimensions: 2.67 in H x 0.19 in W x 1.53 in D
Number of Poles: 4
Series: 270
Temperature Rating (Degrees F): -35 to 85 deg C
Type: 3-Conductor
Voltage Rating: 24 VDC
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Orange
Connection technology: CAGE CLAMP®
Connection type: Cage Clamp
Country of origin: CN
Depth: 68 mm / 2.677 inch
Material: Polyamide (PA66)
Mounting type: 35 mm DIN Rail, DIN-35 rail
Nominal voltage: 24 V
Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
Total number of connection points: 4
Weight: 9.680 g
Width: 5 mm / 0.197 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121410
UPC: 04045454365646
WAGO 270-564/281-483 270 3-Conductor Terminal Block
Additional Description: WAGO-270-564/281-483 3-CONDUCTOR SENSOR SUPPLY TERMINAL BLOCK; LED (GREEN); 2.5 MM; CAGE CLAMP; 2,50 MM; ORANGE 51179375
Catalog Description: 3-conductor sensor supply terminal block; LED (green); 2.5 mm²; CAGE CLAMP®; 2,50 mm²; orange
Item Features
Item FeaturesRoHS Compliant
