270-564

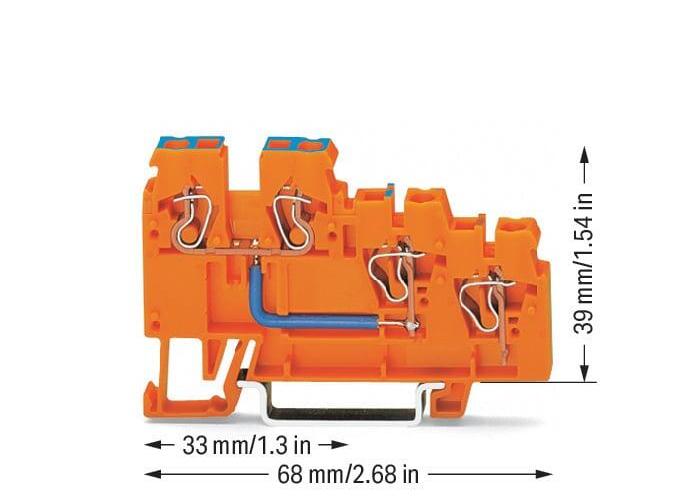

WAGO 270-564 Terminal Blocks
Part Number # 270-564
SKU # 2251052
$7.55 / Each
Typical price:$8.18 / Each
Wago 270-564 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 270-564 |
| SKU #: | 2251052 |
| Amperage Rating: | 18 A |
| Dimensions: | 2.677 in H x 0.197 in W x 1.535 in D |
| Number of Poles: | 2 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Orange |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 68 mm / 2.677 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Rated current: | 18 A |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 9.290 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121410 |
| UPC: | 04045454193768 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.55 / Each
Typical price:$8.18 / Each
Quantity:
- WAGO, 270-564, Actuator Supply Terminal Block, Operating Tool, 250 V, 18 A, 2 Pole, 28 to 12 AWG Wire, 0.24 to 0.28 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Orange, 2.677 in H x 0.197 in W x 1.535 in D Dimensions
270-564 Standards
RoHS CompliantSKU #2251052Part Number #270-564UNSPSC39121410UPC04045454193768
