Part Number # 270-570/281-434
SKU # 2250991
Image Disclaimers Message
270-570/281-434

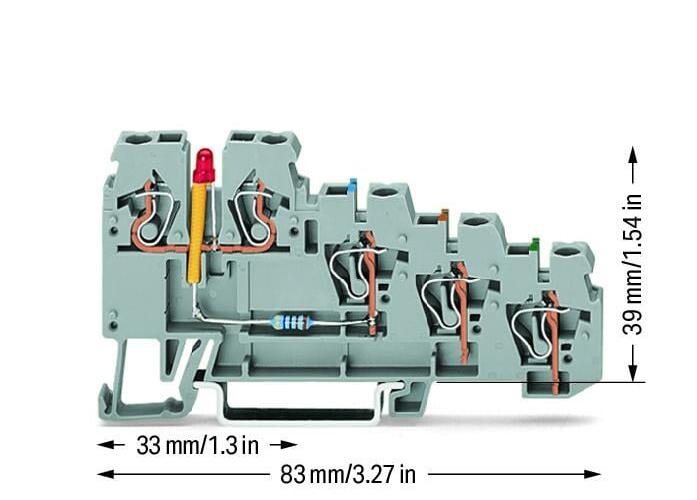

WAGO 270-570/281-434 4-conductor sensor terminal block
Part Number # 270-570/281-434
SKU # 2250991
$17.76 / Each
Typical price:$19.24 / Each
Wago 270-570/281-434 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 270-570/281-434 |
| SKU #: | 2250991 |
| Amperage Rating: | 18 A |
| Dimensions: | 3.268 in H x 0.197 in W x 1.535 in D |
| Number of Poles: | 4 |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Country of origin: | CN |
| Depth: | 83 mm / 3.268 inch |
| Material: | Polyamide |
| Mounting type: | 35 mm DIN Rail, DIN Rail, DIN-35 rail |
| Nominal voltage: | 24 V |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Total number of connection points: | 5 |
| Weight: | 10.000 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04050821283263 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.76 / Each
Typical price:$19.24 / Each
Quantity:
- WAGO, 270-570/281-434, Sensor Terminal Block, Operating Tool, 24 V DC, 18 A, 4 Pole, 28 to 12 AWG Wire, 0.24 to 0.28 in Wire Strip Length, DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 3.268 in H x 0.197 in W x 1.535 in D Dimensions
270-570/281-434 Standards
RoHS CompliantSKU #2250991Part Number #270-570/281-434UNSPSC39121469UPC04050821283263
