Brand: Wago
2706-104

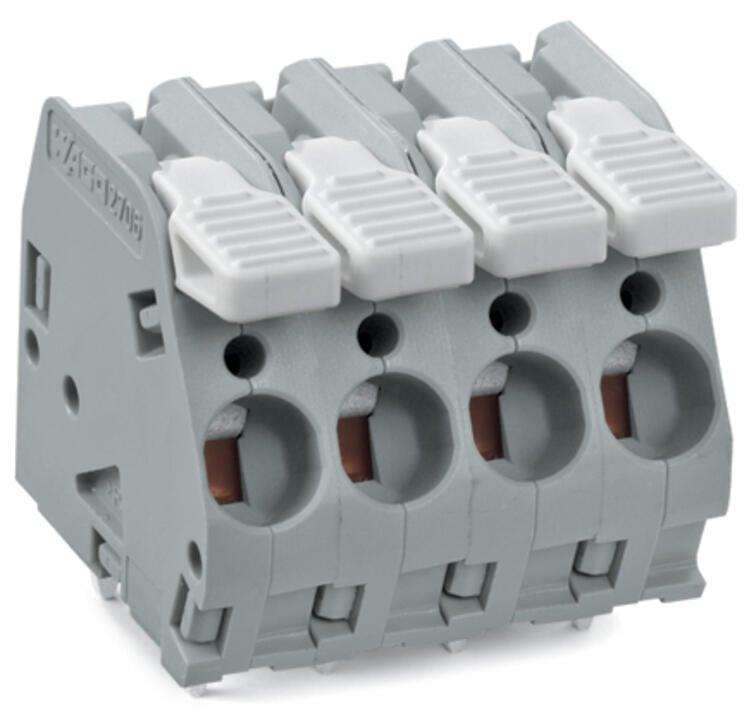

WAGO 2706-104 PCB terminal block
Part Number # 2706-104
SKU # 2346297
$6.30 / Each
Typical price:$7.04 / Each
Wago 2706-104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2706-104 |
| SKU #: | 2346297 |
| Amperage Rating: | 41 A |
| Dimensions: | 1.181 in H x 1.181 in W x 1.024 in D |
| Number of Poles: | 4 |
| Spacing: | 0.295 in |
| Type: | Lever |
| Wire Size: | 20 to 10 AWG |
| Actuation type: | Lever |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 26 mm / 1.024 inch |
| Height: | 30 mm / 1.181 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 41 A |
| Solid conductor: | 0.5 … 6 mm² / 20 … 10 AWG |
| Total number of connection points: | 4 |
| Weight: | 20.792 g |
| Width: | 30 mm / 1.181 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121407 |
| UPC: | 04050821093008 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6.30 / Each
Typical price:$7.04 / Each
Quantity:
WAGO 2706-104 PCB terminal block
Brand: Wago
Part Number: 2706-104
Additional Description: WAGO-2706-104 PCB TERMINAL BLOCK; LEVER; 6 MM; PIN SPACING 7.5 MM; 4-POLE; CAGE CLAMP; 6,00 MM; GRAY 27060104 CLAMP ; 6,00 MM ; GRAY 27060104
Catalog Description: PCB terminal block; lever; 6 mm²; Pin spacing 7.5 mm; 4-pole; CAGE CLAMP®; 6,00 mm²; gray
2706-104 Item Features
- High-current PCB terminal strips with lever-actuated CAGE CLAMP connection
- Tool-free termination - fingers open/close levers
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Two solder pins per contact point for high mechanical stability
2706-104 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2346297Part Number #2706-104UNSPSC39121407UPC04050821093008
