2716-104

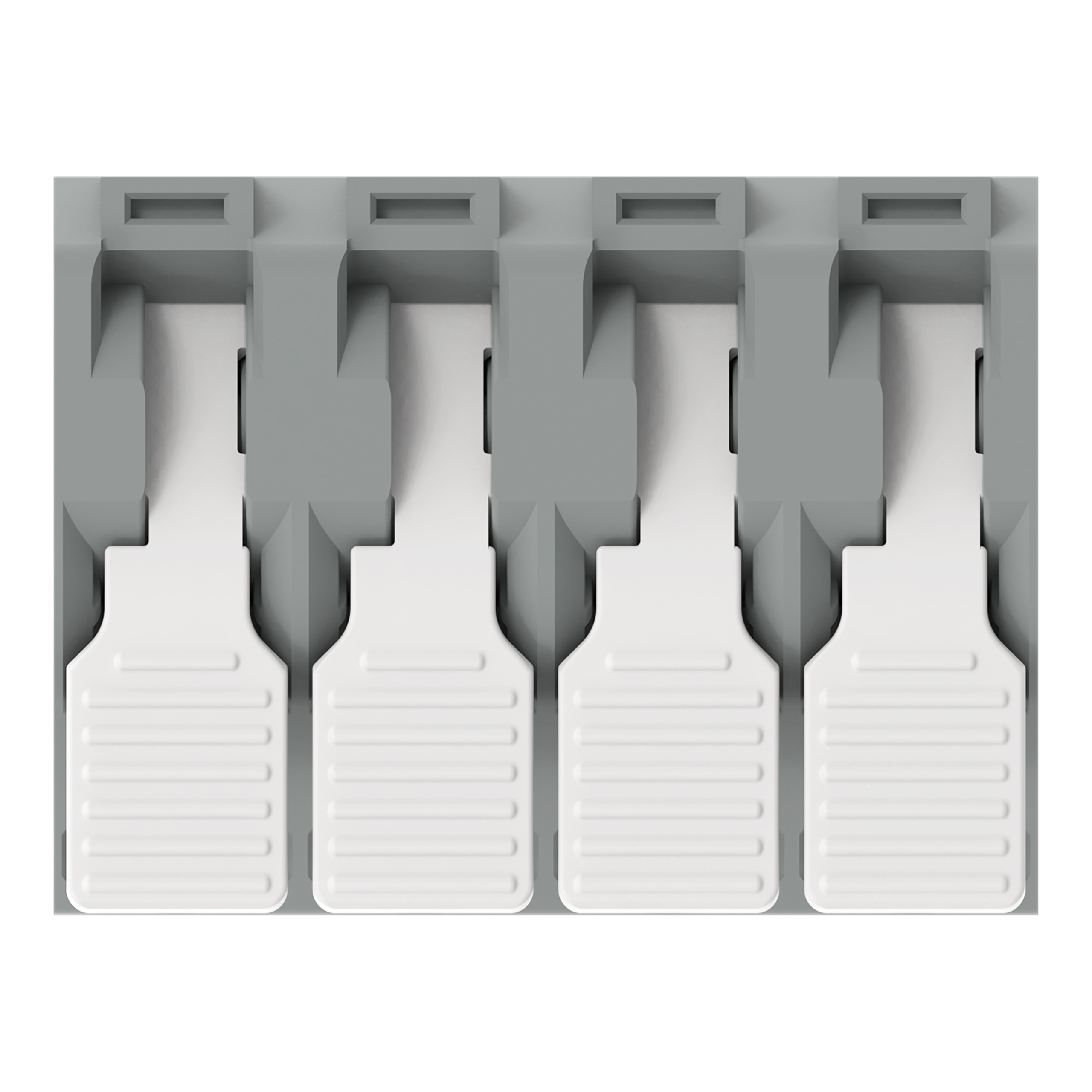

WAGO 2716-104 PCB terminal block
Part Number # 2716-104
SKU # 2242340
$10.18 / Each
Typical price:$11.03 / Each
Wago 2716-104 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2716-104 |
| SKU #: | 2242340 |
| Amperage Rating: | 76 A |
| Dimensions: | 1.311 in H x 1.575 in W x 1.181 in D |
| Number of Poles: | 4 |
| Spacing: | 0.39 in |
| Type: | Lever |
| Wire Size: | 16 to 6 AWG |
| Actuation type: | Lever |
| Approvals per: | CSA, UL 1059 |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Contact material: | Electrolytic copper (ECu) |
| Country of origin: | PL |
| Depth: | 30 mm / 1.181 inch |
| Height: | 33.3 mm / 1.311 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 76 A |
| Solid conductor: | 1.5 … 16 mm² / 16 … 6 AWG |
| Total number of connection points: | 4 |
| Weight: | 35.708 g |
| Width: | 41.5 mm / 1.634 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04045454739287 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.18 / Each
Typical price:$11.03 / Each
Quantity:
WAGO 2716-104 PCB terminal block
Brand: Wago
Part Number: 2716-104
Additional Description: WAGO-2716-104 PCB TERMINAL BLOCK; LEVER; 16 MM; PIN SPACING 10 MM; 4-POLE; CAGE CLAMP; 16,00 MM; GRAY 27160104 CLAMP ; 16,00 MM ; GRAY SLT 27160104
Catalog Description: PCB terminal block; lever; 16 mm²; Pin spacing 10 mm; 4-pole; CAGE CLAMP®; 16,00 mm²; gray
2716-104 Item Features
- High-current PCB terminal strips with lever-actuated CAGE CLAMP connection
- Tool-free termination - fingers open/close levers
- Several clamping units can be held open simultaneously, simplifying the connection of multi-core cables
- Four solder pins per contact point for high mechanical stability
- 600 V UL for 15 mm pin spacing
- Pin and dimensions compatible to high-current, screw-type terminal blocks
2716-104 Standards
UL 1059|IEC/EN 60664-1|RoHS CompliantSKU #2242340Part Number #2716-104UNSPSC39121469UPC04045454739287
