2721-114/026-000

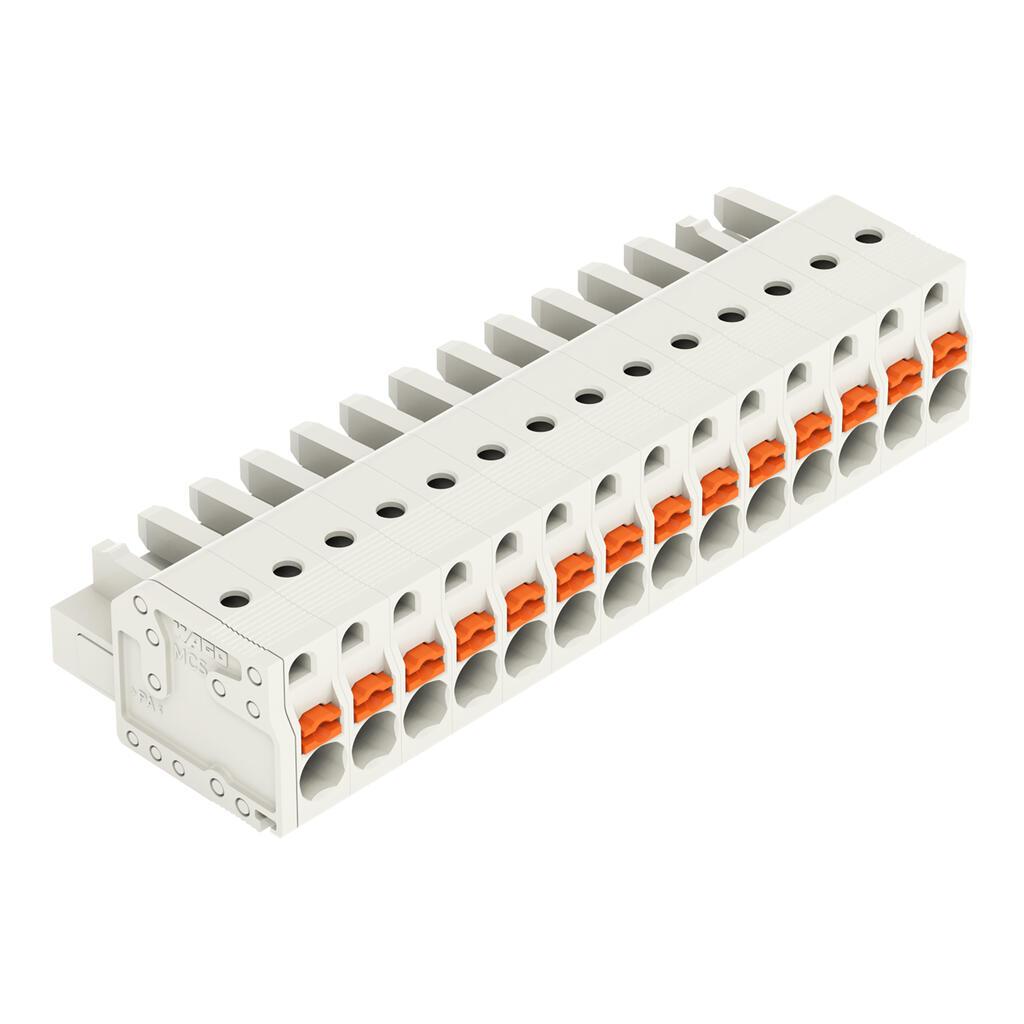

WAGO 2721-114/026-000 1-conductor female plug
Part Number # 2721-114/026-000
SKU # 2378002
$22.44 / Each
Typical price:$24.31 / Each
Wago 2721-114/026-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 2721-114/026-000 |
| SKU #: | 2378002 |
| Amperage Rating: | 16 A |
| Dimensions: | 0.591 in H x 2.815 in W x 1.008 in D |
| Number of Poles: | 14 |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Type: | Push Button |
| Wire Size: | 24 to 12 AWG |
| Actuation type: | Push-button |
| Approvals per: | CSA, UL 1059 |
| Color: | Light gray |
| Conductor entry direction to mating direction: | 0 ° |
| Connection technology: | Push-in CAGE CLAMP® |
| Connection type: | Push-In |
| Connector (connection type): | For conductor |
| Contact material: | Copper alloy |
| Country of origin: | PL |
| Depth: | 25.6 mm / 1.008 inch |
| Height: | 15 mm / 0.591 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Number of connection types: | 1 |
| Rated current: | 16 A |
| Solid conductor: | 0.2 … 2.5 mm² / 24 … 12 AWG |
| Total number of connection points: | 14 |
| Weight: | 22.172 g |
| Width: | 71.5 mm / 2.815 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04045454720636 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$22.44 / Each
Typical price:$24.31 / Each
Quantity:
WAGO 2721-114/026-000 1-conductor female plug
Brand: Wago
Part Number: 2721-114/026-000
Additional Description: WAGO-2721-114/026-000 (N) 1-CONDUCTOR FEMALE PLUG; 100% PROTECTED AGAINST MISMATING; PUSH-BUTTON; 2.5 MM ; PIN SPACING 5 MM; 14-POLE; 2,50 MM ; LIGHT GRAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 1-conductor female connector; push-button; Push-in CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 14-pole; 100% protected against mismating; 2,50 mm²; light gray
2721-114/026-000 Item Features
- Universal connection for all conductor types
- Easy-to-use design does not require specialty tools
- Ability to wire while mated
- Simple, push-in termination of solid and ferruled conductors
- Integrated test ports for testing parallel to the conductor entry
- 100 Percent protected against mismating
- Coding option available
2721-114/026-000 Standards
CSA|IEC/EN 60664-1|RoHS CompliantSKU #2378002Part Number #2721-114/026-000UNSPSC39121469UPC04045454720636
